ERNiCrMo 3 Nickel Weld Wires Dia 1.2mm ERNiCrFe-7 Inconel Welding Wire
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, ISO |
| Model Number: | HMD-NI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Kg |
|---|---|
| Price: | Usd negotiable per Kg |
| Packaging Details: | Export standard package with polywood case or ISPM 15 stamped wooden case |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Tons per Year |
|
Detail Information |
|||
| Name: | Nickel And The Alloys Wire | Material: | ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCu-7,ERNiCu-7,ERNi-1 |
|---|---|---|---|
| Surface: | Bright | Application: | Aviation, Electronics, Industrial, Medical, Chemical |
| Standard: | JIS, GB, DIN, BS, ASTM, AISI | Density: | 8.902g/cm3 |
| Highlight: | ERNiCrMo 3 Nickel Weld Wires,Nickel Weld Wires Dia 1.2mm,ERNiCrFe-7 Inconel Welding Wire |
||
Product Description
Nickel Weld Wires Dia 1.2mm AWS A5.14 ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCu-7,ERNiCu-7
Basic Info.
Model NO.
Nickel Welding Wire
Chemical Composition
Ernicr 3/Ernicr-4
MOQ
1kg
Surface
Bright
Density
8.908 G/Cm³
Resistance
0.096
Melting Point
1435-1446
Treatment
Hydrogen Annealing
Elongation
35%
Ultimate Strength
462MPa
Transport Package
Spool+Carton Box
Specification
0.025-8mm
Trademark
HMD
Origin
China
HS Code
7506100000
Production Capacity
1000kg Per Week
Product Description
1.2mm Nickel base flux cored MIG welding wire ERNi-1 for Ni200 Ni201
ERNiCr-3 (Alloy 82) is used for welding Inconel alloy 600 and Incoloy 800, overlaying on steel and various dissimilar metal welding applications. Weld processes which can be used include GTAW, GMAW and ASAW. Suitable Flux May Be Used. Suitable Flux May Be Used.
Weling series:
ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCu-7,ERNiCu-7,ERNi-1
Standard: Conforms to Certification AWS A5.14 ASME SFA A5.14
Size: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM

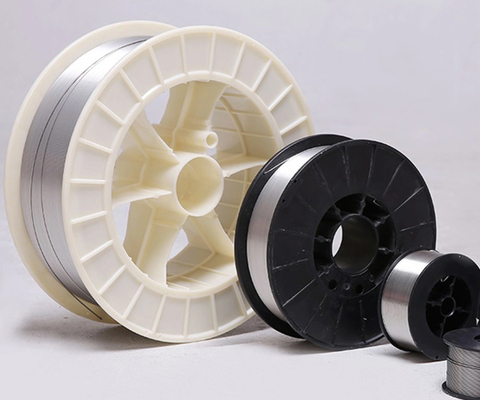

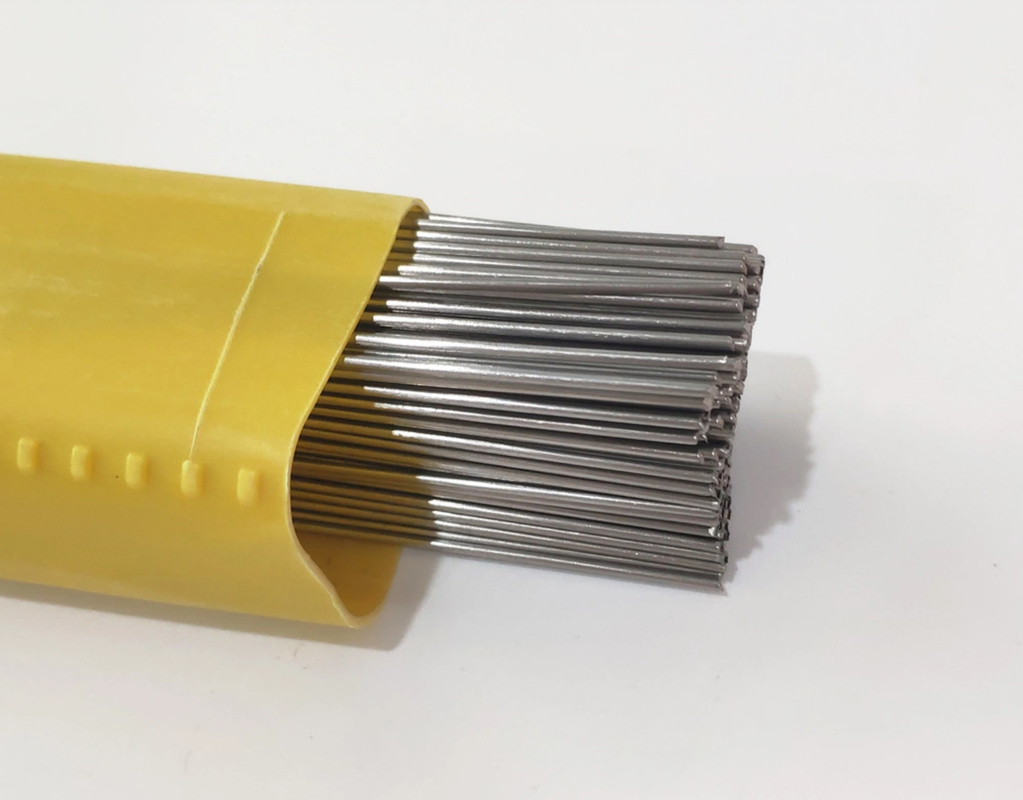

Form: MIG(15kgs/spool), TIG(5kgs/box),Strip
Weling series:
ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCu-7,ERNiCu-7,ERNi-1
Standard: Conforms to Certification AWS A5.14 ASME SFA A5.14
Size: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM
Form: MIG(15kgs/spool), TIG(5kgs/box),Strip
|
Type
|
Standard
|
Manin chemcial composition %
|
Typical application
|
|
Nickel welding wire
|
A5.14 ERNi-1
|
Ni ≥ 93 Ti3 Al1 Cr-- Mo--
|
ERNi-1 is used for GMAW, GTAW and ASAW welding of Nickel 200 and 201, joining these alloys to stainless and carbon steels, and
other nickel and copper-nickel base metals. Also used for overlaying steel. |
|
NiCuwelding wire
|
A5.14
ERNiCu-7 |
Ni 65 Cr-- Mo-- Ti2 Other: Cu
|
ERNiCu-7 is a copper-nickel alloy base wire for GMAW and GTAW welding of Monel alloys 400 and 404. Also used for overlaying steel
after first applying Layer of 610 nickel. |
|
CuNi welding wire
|
A5.7
ERCuNi |
Ni 30 Cr-- Mo-- Other: Cu
|
ERCuNi is used for gas metal and gas tungsten arc welding. Can also be used by oxy-fuel welding of 70/30, 80/20, and 90/10 copper
nickel alloys. A barrier layer of nickel alloy 610 is recommended prior to overlaying steel with GMAW weld process. |
|
NiCr
welding wire |
A5.14
ERNiCrFe-3 |
Ni≥ 67 Cr 20 Mo--- Mn3 Nb2.5 Fe2
|
Type ENiCrFe-3 electrodes are used for welding of nickel-chromium-iron alloys to themselves and for dissimilar welding between
nickel-chromium-iron alloys and steels or stainless steels. |
|
A5.14
ERNiCrFe-7 |
Ni: Rest Cr 30 Fe 9
|
Type ERNiCrFe-7 is used for gas-tungsten-arc and gas-metal-arc welding of INCONEL 690.
|
|
|
NiCrMo welding wire
|
A5.14
ERNiCrMo-3 |
Ni≥ 58 Cr 21 Mo 9 Nb3.5 Fe ≤1.0
|
ERNiCrMo-3 is used primarily for gas tungsten and gas metal arc and matching composition base metals. It is also used for welding
Inconel 601 and Incoloy 800. It can be used to weld dissimilar metal combinations such as steel, stainless steel, Inconel and Incoloy alloys. |
|
A5.14
ERNiCrMo-4 |
Ni Rest Cr 16 Mo 16 W3.7
|
ERNiCrMo-4 is used for welding nickel-chromium-molybdenum base materials to itself, steel and other nickel base alloys and for
cladding steel. |
|
|
A5.14
ERNiCrMo-10 |
Ni Rest Cr 21 Mo 14 W3.2 Fe 2.5
|
ERNiCrMo-10 is used for welding nickel-chromium-molybdenum base materials to themselves, steel and other nickel base alloys, and
for cladding steels. Can be used to weld duplex, super duplex stainless steels. |
|
|
A5.14
ERNiCrMo-14 |
Ni Rest Cr 21 Mo 16 W3.7
|
ERNiCrMo-14 is used for gas-tungsten-arc and gas-metal-arc welding of duplex, super-duplex and super-austenitic stainless steels,
as well as nickel alloys such as UNS N06059 and N06022, INCONEL alloy C-276, and INCONEL alloys 22, 625, and 686. |
