Titanium Gr1 Gr2 Heat Exchanger Tube Sheet SA182 F304L F316L Clad Plate Tube Sheets
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, LR |
| Model Number: | NONE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | USD 1-5 per kg |
| Packaging Details: | Seaworthy and proper protecting goods packing |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 tons per year |
|
Detail Information |
|||
| Material: | SA182 F304,304L,F316,316L, F310, F317L, F321, F347 | Cladding Size: | 2-12mm |
|---|---|---|---|
| Base Plate Size: | 2-400mm | Length: | 15 Meters Max |
| Standard: | ASTM B898 | Status: | Annealed |
| Highlight: | Titanium Gr1 Gr2 Heat Exchanger Tube Sheet,Heat Exchanger Tube Sheet SA182,F316L Clad Plate Tube Sheets |
||
Product Description
Corrosion Resistance TitaniumGr1/Gr2/Gr5/Gr7/Gr9/Gr12+SA182 F304L,F316L, Clad Plate Cladding Plates Tube Sheets
Product Description

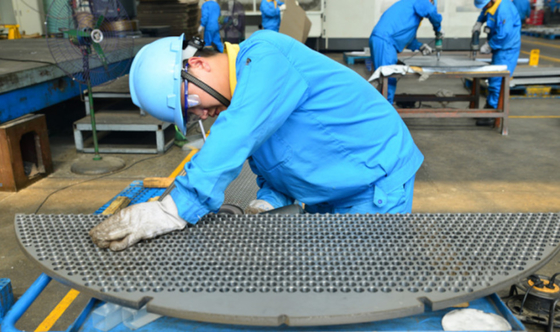

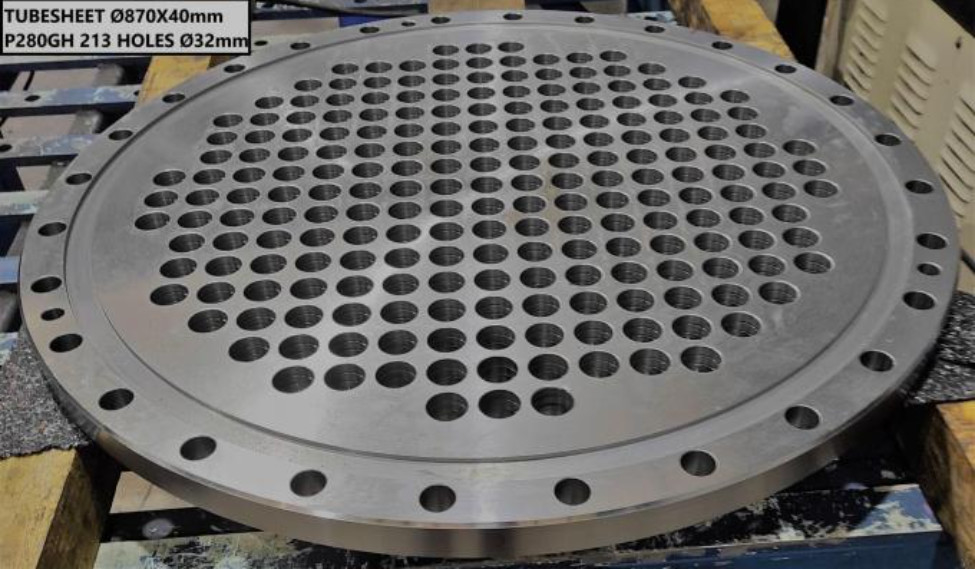

Titanium tubesheet is mainly used for chemical containers to support column tubes. Titanium tubesheet is widely used in chemical equipment in high-end because of its excellent corrosion resistance. In addition to provide the titanium tube sheet which has not been machined, Lixing Titanium also produces the mechanically processed tube sheet according to the drawing from customer. We use CNC drilling machine with the rocker drilling hole processing, effectively ensure the position precision of the double tube sheet hole, aperture of tolerance and aperture finish, greatly improved the quality of the tube sheet.
Applications
Used for shell and tube heat exchanger, boiler, pressure vessel, steam turbine, the large central air conditioning, water desalination, etc.
Testing
Chemical composition test
Physical properties test
Appearance defects inspection
Ultrasonic flaw detection
Specification
| Grade | Status | Specification | |
|
Gr1, Gr2, Gr4, Gr7, Gr11, Gr12, Gr16 |
Hot Rolled(R) Cold Rolled(Y) Annealed(M) Solution treatment(ST) |
OD (mm) | Thickness(mm) |
| 150～2500 | 35～250 | ||
Chemical composition
| Grade | Chemical composition, weight percent (%) | ||||||||||||
|
C (≤) |
O (≤) |
N (≤) |
H (≤) |
Fe (≤) |
Al | V | Pd | Ru | Ni | Mo |
Other Elements Max. each |
Other Elements Max. total |
|
| Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.20 | — | — | — | — | — | — | 0.1 | 0.4 |
| Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | — | — | — | — | 0.1 | 0.4 |
| Gr4 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | — | — | — | — | 0.1 | 0.4 |
| Gr7 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | 0.12～0.25 | — | 0.12～0.25 | — | 0.1 | 0.4 |
| Gr11 | 0.08 | 0.18 | 0.03 | 0.15 | 0.2 | — | — | 0.12～0.25 | — | — | — | 0.1 | 0.4 |
| Gr12 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | — | — | — | — | 0.6～0.9 | 0.2～0.4 | 0.1 | 0.4 |
| Gr16 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | — | — | 0.04～0.08 | — | — | — | 0.1 | 0.4 |
Physical properties
| Grade | Physical properties | ||||||
|
Tensile strength Min |
Yield strength (0.2%, offset) |
Elongation in 50mm Min (%) |
|||||
| ksi | MPa | Min | Max | ||||
| ksi | MPa | ksi | MPa | ||||
| Gr1 | 35 | 240 | 20 | 138 | 45 | 310 | 24 |
| Gr2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
| Gr4 | 80 | 550 | 70 | 483 | 95 | 655 | 15 |
| Gr7 | 50 | 345 | 40 | 275 | 65 | 450 | 20 |
| Gr11 | 35 | 240 | 20 | 138 | 45 | 310 | 24 |
| Gr12 | 70 | 483 | 50 | 345 | — | — | 18 |
| Gr16 | 50 | 345 | 40 | 275 | 65 | 450 |
20 |
