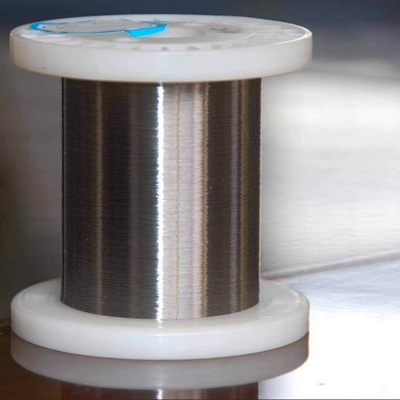

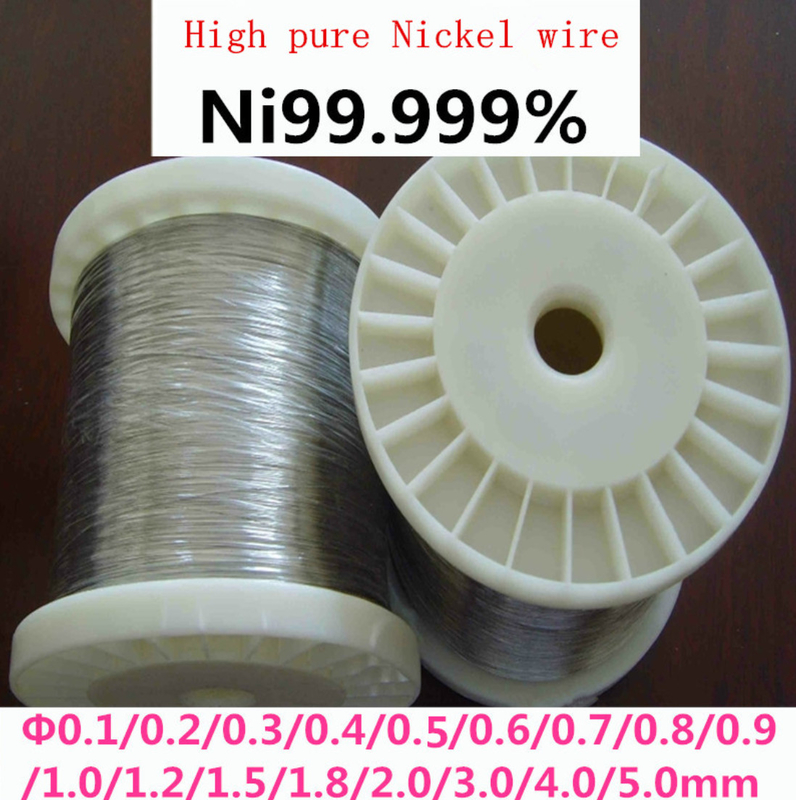

99.6% Pure Nickel Wire Ni200 Ni201 0.25mm Nickel Mig Wire
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, ISO |
| Model Number: | HMD-NI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Kg |
|---|---|
| Price: | Usd negotiable per Kg |
| Packaging Details: | Export standard package with polywood case or ISPM 15 stamped wooden case |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Tons per Year |
|
Detail Information |
|||
| Name: | Nickel And The Alloys Wire | Material: | UNS N02201/02200 |
|---|---|---|---|
| Surface: | Bright | Application: | Aviation, Electronics, Industrial, Medical, Chemical |
| Standard: | JIS, GB, DIN, BS, ASTM, AISI | Density: | 8.902g/cm3 |
| Highlight: | 99.6% Pure Nickel Wire,Pure Nickel Wire Ni200 Ni201,Ni201 0.25mm Nickel Mig Wire |
||
Product Description
Precision/Manufacture 0.25mm 99.6%/Ni200/Ni201 Pure Nickel Stranded Alloy Wire
Product Description:
Nickel is a naturally-occurring metallic element with a silvery-white, shiny appearance. It is the fifth-most common element on earth and occurs extensively in the earth’s crust and core. Nickel, along with iron, is also a common element in meteorites and can even be found in small quantities in plants, animals and seawater.
Chemical Composition
| Grade | Element Composition/% | |||||||
| Ni+Co | Mn | Cu | Fe | C | Si | Cr | S | |
| Ni201 | ≥99.0 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.02 | ≤0.3 | ≤0.2 | ≤0.01 |
| Ni200 | ≥99.0 | /≤0.35 | ≤0.25 | ≤0.30 | ≤0.15 | ≤0.3 | ≤0.2 | ≤0.01 |
Propertis
| Density | Melting point | Coefficient of expansion | Modulus of rigidity | Modulus of elasticity | Electrical resistivity | |
| Ni200 | 8.9g/cm3 | 1446°C | 13.3 µm/m °C (20-100°C) | 81kN/mm2 | 204kN/mm2 | 9.6μW• cm |
| Ni201 | 1446°C | 13.1µm/m °C(20-100°C) | 82kN/mm2 | 207kN/mm2 | 8.5μW• cm |
| Diameter(mm) | Tolerance(mm) | Diameter(mm) | Tolerance(mm) |
| 0.03-0.05 | ±0.005 | >0.50-1.00 | ±0.02 |
| >0.05-0.10 | ±0.006 | >1.00-3.00 | ±0.03 |
| >0.10-0.20 | ±0.008 | >3.00-6.00 | ±0.04 |
| >0.20-0.30 | ±0.010 | >6.00-8.00 | ±0.05 |
| >0.30-0.50 | ±0.015 | >8.00-12.0 | ±0.4 |
