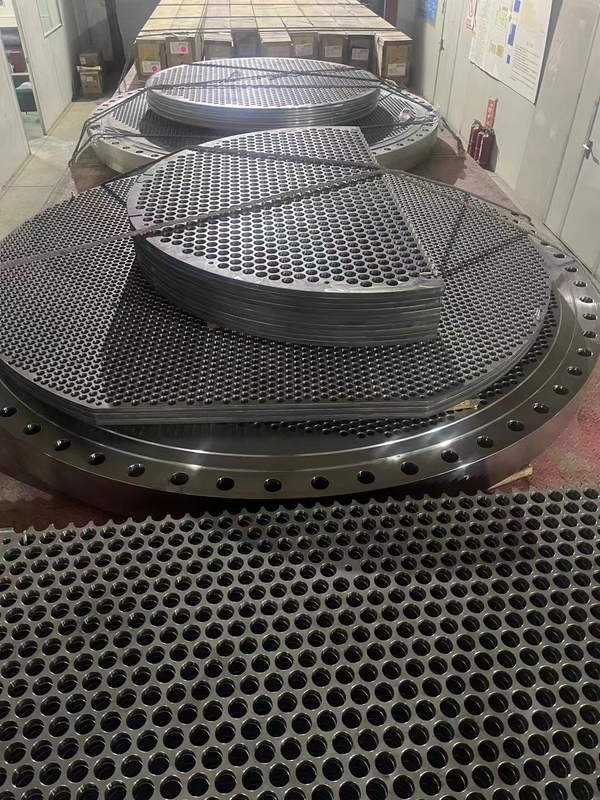

2-12mm Titanium Tube Sheet Gr9 Gr12 Titanium Cladding Plates Tube Sheets
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, LR |
| Model Number: | NONE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kg |
|---|---|
| Price: | USD 1-5 per kg |
| Packaging Details: | Seaworthy and proper protecting goods packing |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 tons per year |
|
Detail Information |
|||
| Material: | Titanium Gr1, Gr2, Gr3,Gr5, Gr9,Gr7, Gr11, Gr12, Etc | Cladding Size: | 2-12mm |
|---|---|---|---|
| Base Plate Size: | 2-200mm | Length: | 15 Meters Max |
| Standard: | ASTM B898 | Surface: | Polished |
| Application: | Heat Exchanger | ||
| Highlight: | 12mm Titanium Tube Sheet,Titanium Tube Sheet Gr9 Gr12,Gr12 Titanium Cladding Plates Tube Sheets |
||
Product Description
Titanium Gr1, Gr2, Gr5, Gr9,Gr7, Gr12, etc cladding plates and tube sheets
Product Description
Titanium has been widely used in various chemical reaction vessels and heat exchanger materials because of its excellent corrosion resistance, but its disadvantage is high cost. Especially for the use as structural components, this problem is particularly obvious, And the effective solution is the use of titanium clad steel plate. The combination of titanium and ordinary steel is called titanium clad steel plate. It has the corrosion resistance of titanium and the strength of the ordinary steel plate as the structure. What matters most is that the overall cost can be reduced greatly.
AVAILABLE SIZES:
Cladding plates thickness:2-12mm
Base plates thickness: 3-200mm
Length: 12 meters Max.
PROCESSING :
Rolling cladding and Explosive cladding
STANDARD:
ASTMB898
EXAMPLE APPLICATIONS:
Urea plant, Sea water desalination plant, Chemical equipment, Petroleum produce, Aerospace and so on....
| Product Name | Titanium Clad Steel Plate |
| Cldding Material Scope | Titanium(Gr1, Gr2, Gr3,Gr5, Gr9,Gr7, Gr11, Gr12, etc) |
| Titanium Type of the Clad | Ti-steel clad plate,Ti-stainless steel clad plate,Ti-aluminum clad plate,Ti-copper clad plate,Ti-nickel clad plate |
| Technique | Explosive welding, Rolling |
| Standard | ASTMB898, NB/T47002.3-2010 |
| Overall Thickness | 5-210mm |
| Cladding thickness | 2-15mm |
| Width | 4000mm or Customizable |
| Length | 10000mm or Customizable |
