ASTM F67 Titanium Alloy Plate ASTMB265 Titanium Sheet Metal Thickness 0.1mm 100mm
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, ISO |
| Model Number: | HMD-TI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | USD 15-20 Per KG |
| Packaging Details: | Wooden cases or other suitable for shipment. |
| Delivery Time: | 15-30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 TONS Per Year |
|
Detail Information |
|||
| Product: | Titanium Sheet And Plate | Material: | Titanium Gr1/Gr2/Gr3/Gr5/Gr7/Gr9/Gr12 |
|---|---|---|---|
| Standard: | ASTMB265, ASTM F67, ASTM F136, AMS 4901/4907/4911 | Technical: | Hot Rolling, Cold Rolling |
| Status: | Annealed | Density: | 4.51g/cm3 |
| Highlight: | ASTM F67 Titanium Alloy Plate,Titanium Alloy Plate ASTMB265,ASTMB265 Titanium Sheet Metal |
||
Product Description
Product Description:
Industrial pure titanium and titanium alloy plate are selected for their unique combination of high strength, lightweight, corrosion resistance, biocompatibility, and higher temperature performance used in many different applications across the Marine, automotive, aerospace, medical, Industrial, and Oil and Gas industries.

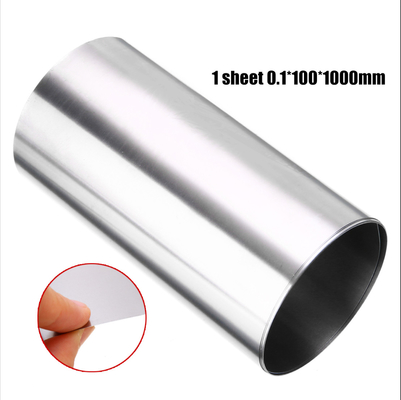

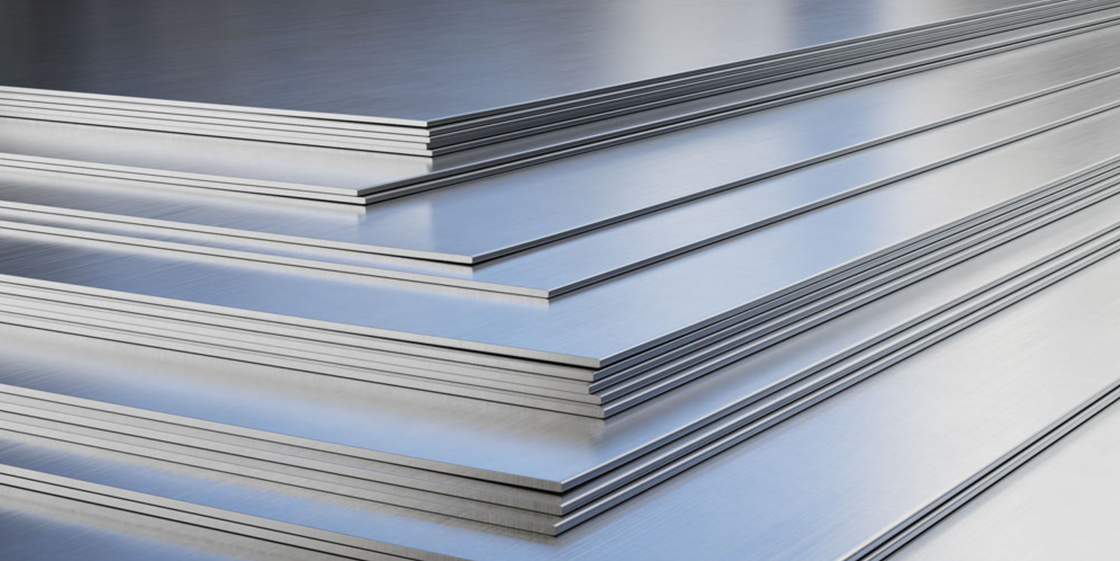

Our titanium plates are available in a thickness range of 0.1~ 100mm.
Chemical Composition
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | Bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | Bal |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | Bal |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | / | / | / | Bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12-0.25 | / | / | Bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | Bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 02-0.4 | 0.6-0.9 | Bal |
Mechanical properties Requirements
| Grade | Tensile strengt(min) | Yield strength(min) | Elongaion(%) | ||
| Ksi | MPa | Ksi | Mpa | ||
| Gr1 | 35 | 240 | 20 | 138 | 24 |
| Gr2 | 50 | 345 | 40 | 275 | 20 |
| Gr3 | 65 | 450 | 55 | 380 | 18 |
| Gr4 | 80 | 550 | 70 | 483 | 15 |
| Gr5 | 130 | 895 | 120 | 828 | 10 |
| Gr7 | 50 | 345 | 40 | 275 | 20 |
| Gr9 | 90 | 620 | 70 | 438 | 15 |
| Gr12 | 70 | 438 | 50 | 345 | 18 |
