Corrosion Resistant Titanium Alloy Tubes ASTM B338 Seamless Titanium Tubing Pipe
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, ISO |
| Model Number: | HMD-TI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Kg |
|---|---|
| Price: | USD 10-20 Per Kg |
| Packaging Details: | Wooden cases or other suitable for shipment. |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Tons Per Year |
|
Detail Information |
|||
| Name: | Titanium Pipe/tube | Material: | Titanium Gr1/Gr2/Gr3/Gr5/Gr7/Gr9/Gr12 |
|---|---|---|---|
| Main Type: | Seamless And Welded | Standard: | ASTM B338/337 |
| Application: | Industrial,Heat Exchanger,Medical | Status: | Anneal |
| Highlight: | Corrosion Resistant Titanium Alloy Tubes BV,ASTM B338 seamless titanium pipe,ASTM B338 Seamless Titanium Tubing |
||
Product Description
ASTM/B338, B337/Corrosion Resistant Titanium Alloy Tubes for Petrochemical, Medical, Aerospace and Other Fields
Product Description

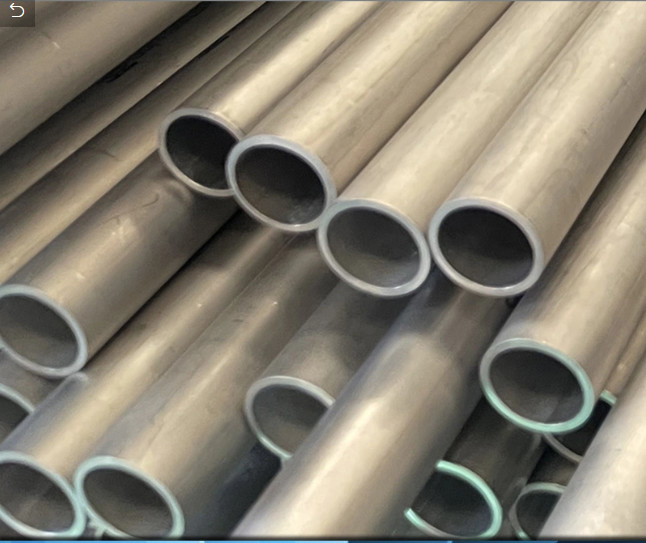

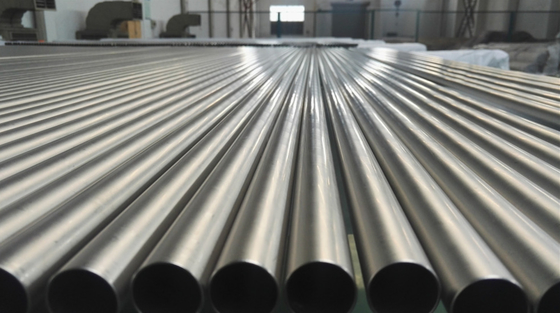

Titanium tube is used in a variety of applications including for use in titanium heat exchangers, condensers and evaporators and medical applications such as implants.
The choice of using Titanium Seamless Tubes over Titanium Welded tubes is largely driven by application and required dimensions of the pipe. Titanium Seamless Pipes generally offer increased strength and pressure capabilities over Welded tubes with welded tubes offering increased options on size and form. If you already know what type you require please find visit our dedicated titanium tube sites. Alternatively speak to one of our team today.
| Product | Titanium seamless and welded Tube/Pipe |
| Material | Gr1,Gr2,Gr3,Gr7,Gr9,Gr12 |
| Standard | ASTM B861, ASTM B338, Astm B337 |
| Application | Heat Exchanger, Condensers, Water Treatment, Desalination, etc. |
| Size Range | OD: 6-219mm, WT: 0.5-22mm, Length: ≤18000mm |
Size Tolerance:
| Standard | OD Tolerance | WT Tolerance |
| ASTM B338 | <25.4mm ±0.102mm | ±10% |
| 25.4-38.1mm ±0.127mm | ||
| 38.1-50.8mm ±0.152mm | ||
| 50.8-63.5mm ±0.178mm | ||
| 63.5-88.9mm ±0.254mm | ||
| ASTM B861 | 3.2-3.8mm -0.794/+0.397mm | ±12.5% |
| 38-102mm ±0.794mm | ||
| 102-203mm 0.794/+1.588mm |
Test:
Our own lab to ensure the tubes meeting the international standard specifications or customer's requirement, also third part inspections are welcome.
