AMS 4901 Titanium Mesh Sheets AMS 2631 Titanium Mesh Plate For Marine Automotive
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, ISO |
| Model Number: | HMD-TI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | USD 15-20 Per KG |
| Packaging Details: | Wooden cases or other suitable for shipment. |
| Delivery Time: | 15-30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 TONS Per Year |
|
Detail Information |
|||
| Product: | Titanium Mesh Sheet And Mesh Plate | Material: | Titanium Gr1/Gr2/Gr3/Gr5/Gr7/Gr9/Gr12 |
|---|---|---|---|
| Standard: | ASTMB265, ASTM F67, ASTM F136, AMS 4901/4907/4911 | Technical: | Hot Rolling, Cold Rolling |
| Status: | Annealed | Density: | 4.51g/cm3 |
| Highlight: | AMS 4901 Titanium Mesh Sheets,Titanium Mesh Sheets AMS 2631,AMS 2631 Titanium Mesh Plate |
||
Product Description

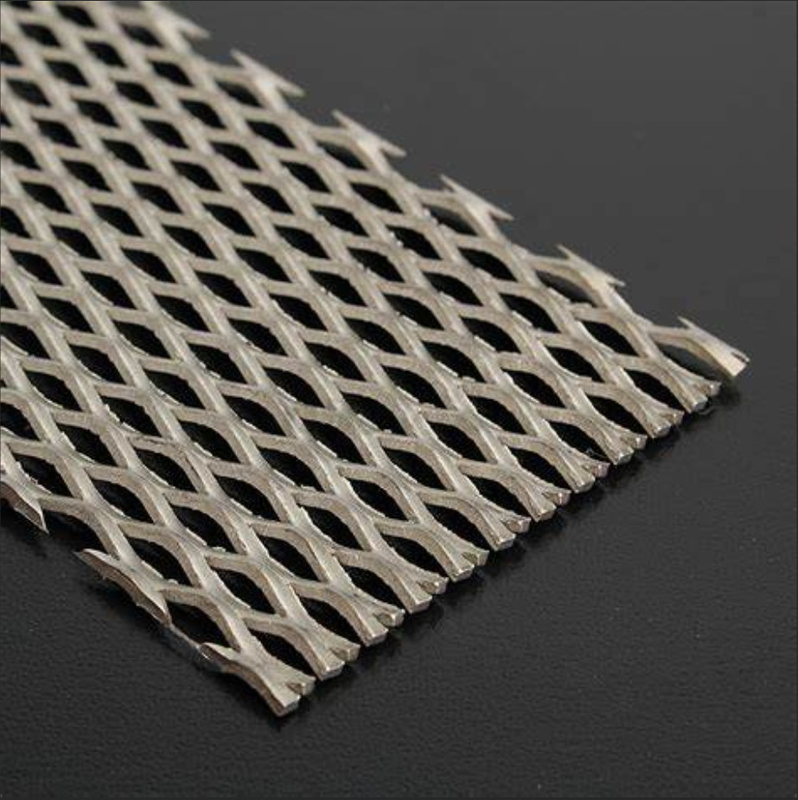

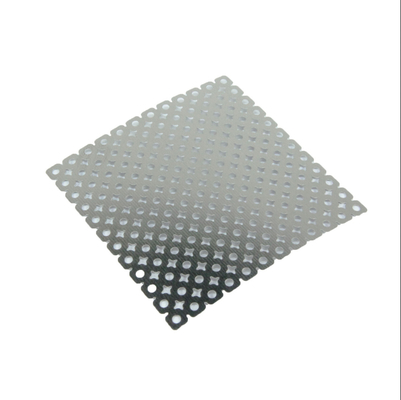

Titanium Mesh Sheets and Mesh Plates Thickness 0.1mm-100mm for GR1, Gr2, Gr5, Gr7, Gr9, Gr12 Series
Product Description:
Industrial pure titanium and titanium alloy plate are selected for their unique combination of high strength, lightweight, corrosion resistance, biocompatibility, and higher temperature performance used in many different applications across the Marine, automotive, aerospace, medical, Industrial, and Oil and Gas industries.
Our titanium plates are available in a thickness range of 0.1~ 100mm. No matter what size or thickness you require for your project, we have the inventory and the capabilities to provide you with exactly what meets your specifications.
Specifications:
- Titanium Grade 2 Plate: ASTM B265, ASTM F67, NACE MR0175
- Titanium Grade 4 Plate: AMS 4901, ASTM B265, ASTM F67, MIL-T-9046
- Titanium 6Al-4V Grade 5 Plate: AMS 2631, AMS 4911, MIL-T-9046, ASTM B265
- Titanium 6Al-4V Grade 23 ELI Plate: AMS 4907, ASTM F136, ASTM B265
Chemical Composition
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | Bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | Bal |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | Bal |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | / | / | / | Bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12-0.25 | / | / | Bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | Bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 02-0.4 | 0.6-0.9 | Bal |
