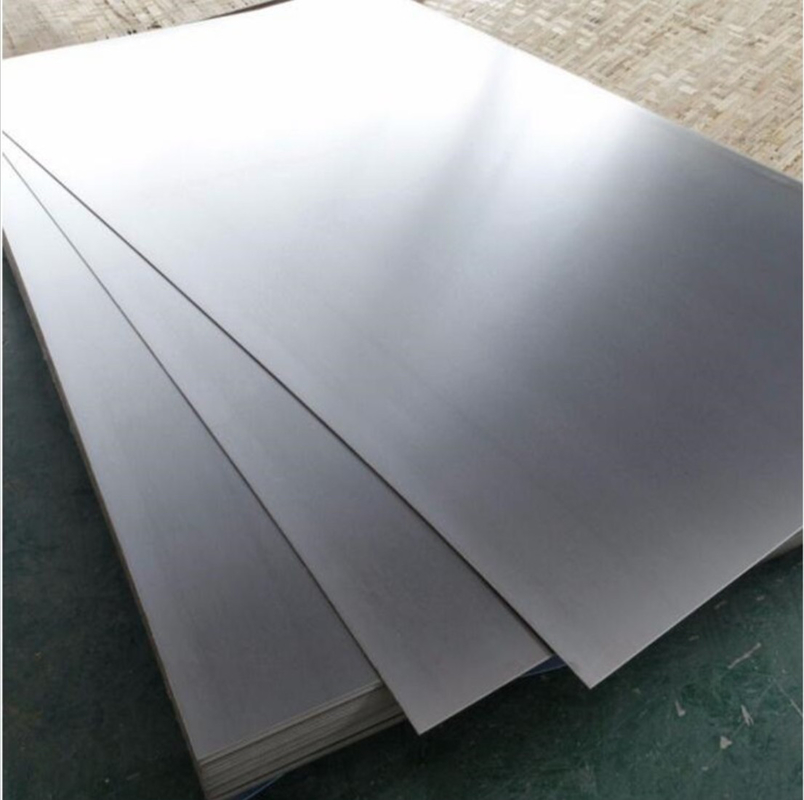

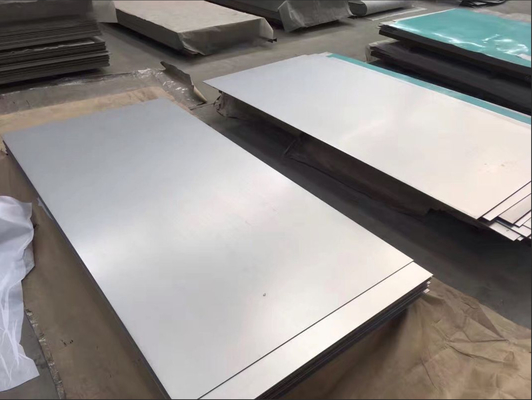

ASTM F136 Titanium Sheets Plates ASTM F67 1mm 3mm Titanium Sheet
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, ISO |
| Model Number: | HMD-TI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | USD 15-20 Per KG |
| Packaging Details: | Wooden cases or other suitable for shipment. |
| Delivery Time: | 15-30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 TONS Per Year |
|
Detail Information |
|||
| Product: | Titanium Sheet And Plate | Material: | Titanium Gr1/Gr2/Gr3/Gr5/Gr7/Gr9/Gr12 |
|---|---|---|---|
| Standard: | ASTMB265, ASTM F67, ASTM F136 | Technical: | Forged, Hot Rolling, Cold Rolling |
| Status: | Annealed | Density: | 4.51g/cm3 |
| Highlight: | ASTM F136 Titanium Sheets Plates,ASTM F136 3mm Titanium Sheet,ASTM F67 1mm Titanium Sheet |
||
Product Description
Product Description:
Titanium Industries selection of Titanium Plate is illustrated below, used in applications across Aerospace, Defense, Medical, Industrial, and Oil & Gas industries. Used due to unique combination of high strength, light weight, corrosion resistance, biocompatibility, and higher temperature performance.
Titanium Plate thickness is available from 0.1mm ------ 100mm.
Specifications:
- Titanium Grade 2 Plate: ASTM B265, ASTM F67, NACE MR0175
- Titanium Grade 4 Plate: AMS 4901, ASTM B265, ASTM F67, MIL-T-9046
- Titanium 6Al-4V Grade 5 Plate: AMS 2631, AMS 4911, MIL-T-9046, ASTM B265
- Titanium 6Al-4V Grade 23 ELI Plate: AMS 4907, ASTM F136, ASTM B265
| STANDARD | CHEMICAL COMPOSITION (weight %, max or range) | MECHANICAL PROPERTIES (min) | |||||||||||||
| ASTM B265 | UNS No |
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Tensile | Yield | El. | Red. |
| Mpa | Mpa | % | % | ||||||||||||
| GR 1 | R50250 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | 240 | 138 | 24 | 30 | |||||
| GR 2 | R50400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 345 | 275 | 20 | 30 | |||||
| GR 3 | R50550 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | 450 | 380 | 18 | 30 | |||||
| GR 4 | R50700 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | 550 | 483 | 15 | 25 | |||||
| GR 5 | R56400 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | 895 | 828 | 10 | 25 | |||
| GR 7 | R52400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.12-0.25 | 345 | 275 | 20 | 30 | ||||
| GR 9 | R56320 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | 620 | 483 | 15 | 25 | |||
| GR 12 | R53400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.2-0.4 | 0.6-0.9 | 483 | 345 | 18 | 25 | |||
| GR 23 | R56401 | 0.03 | 0.08 | 0.0125 | 0.25 | 0.13 | 5.5-6.5 | 3.5-4.5 | 828 | 759 | 10 | 15 | |||
