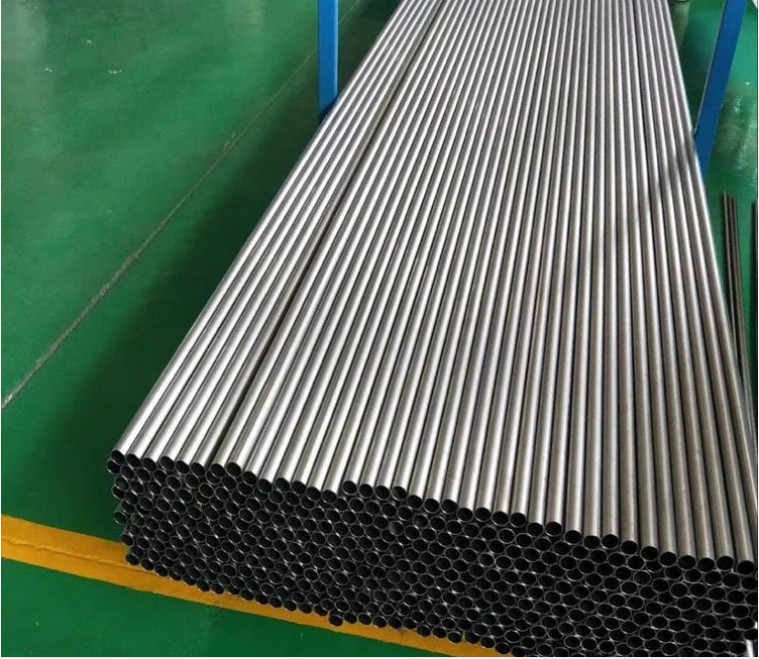

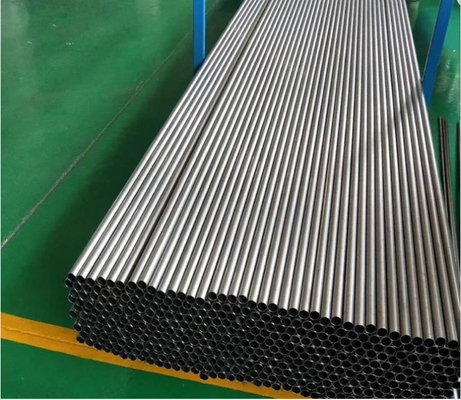

Gr3 Pure Titanium Alloy Pipes ASTM B338 1 Inch 2 Inch Titanium Tubing For Heat Exchanger
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, ISO |
| Model Number: | HMD-TI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Kg |
|---|---|
| Price: | USD 10-20 Per Kg |
| Packaging Details: | Wooden cases or other suitable for shipment. |
| Delivery Time: | 20-30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Tons Per Year |
|
Detail Information |
|||
| Name: | Titanium Pipe/tube | Material: | Titanium Gr1/Gr2/Gr3/Gr5/Gr7/Gr9/Gr12 |
|---|---|---|---|
| Main Type: | Seamless And Welded | Standard: | ASTM B338/337/861 |
| Application: | Industrial,Heat Exchanger,Medical | Status: | Anneal |
| Highlight: | Gr3 Pure Titanium Alloy Pipes,ASTM B338 2 Inch Titanium Tubing,Gr3 1 Inch Titanium Tubing |
||
Product Description
Pure Titanium and Alloy Gr1, GR2, Gr3, Gr7, Gr9,G12 Tubes, Pipes ASTM B338 for Heat Exchanger
Product Description
Titanium tube has the advantages of lightweight, high strength and superior mechanical properties. It is widely used in heat exchange equipment, such as tubular heat exchangers, coil heat exchangers, coil heat exchangers, condenser, evaporator, and transmission pipelines. Many nuclear power industries take titanium tubes as the standard tubes for their units.
| Product | Titanium seamless and welded Tube/Pipe |
| Material | Gr1,Gr2,Gr3,Gr7,Gr9,Gr12 |
| Standard | ASTM B861, ASTM B338, ASTMB337 |
| Size Range | OD: 6-219mm, WT: 0.5-22mm, Length: ≤18000mm |
Tensile Requirements
| Grade | Tensile strength(min) | Yield Strength(min) | Elongation(%) | ||
| KSI | MPa | KSI | MPa | ||
| Gr1 | 35 | 240 | 20 | 138 | 24 |
| Gr2 | 50 | 345 | 40 | 275 | 20 |
| Gr3 | 65 | 450 | 55 | 380 | 18 |
| Gr4 | 80 | 550 | 70 | 483 | 15 |
| Gr5 | 130 | 895 | 120 | 828 | 10 |
