ASTM B338 Seamless Titanium Alloy Pipe Gr12 1.5 2.5 Titanium Tubing
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, ISO |
| Model Number: | HMD-TI |
Payment & Shipping Terms:
| Minimum Order Quantity: | one piece |
|---|---|
| Price: | Usd negotiable per Kg |
| Packaging Details: | Wooden cases or other suitable for shipment. |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Tons per Year |
|
Detail Information |
|||
| Name: | Titanium Pipe/tube | Main Type: | Seamless And Welded |
|---|---|---|---|
| Standard: | ASTM B338 | Application: | Industrial,Heat Exchanger,Medical |
| Material: | GR1. GR2. GR3. GR5. GR7. GR9. GR12. GR16 | Delivery Condition: | Anneal |
| Highlight: | ASTM B338 Seamless Titanium Alloy Pipe,ASTM B338 1.5 Titanium Tubing,Gr12 2.5 Titanium Tubing |
||
Product Description

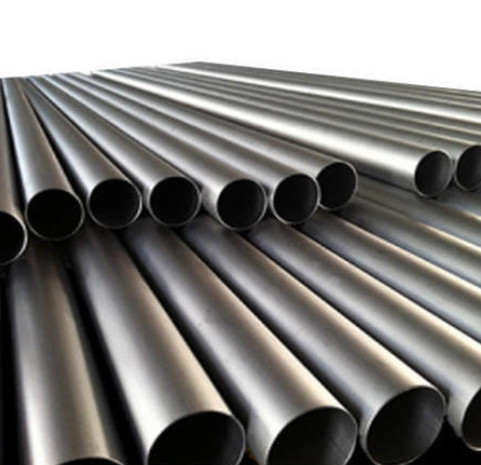

Titanium and the alloy seamless and welded pipes or tubes
Product Description
| Product | Titanium seamless and welded Tube/Pipe |
| Material | Gr1,Gr2,Gr3,Gr7,Gr9,Gr12 |
| Standard | ASTM B861, ASTM B338 |
| Application | Heat Exchanger, Condensers, Water Treatment, Desalination, etc. |
| Size Range | OD: 6-219mm, WT: 0.5-22mm, Length: ≤18000mm |
Chemical Component of Material
Grade 1—Unalloyed titanium,
Grade 2—Unalloyed titanium,
Grade 3—Unalloyed titanium,
Grade 7—Unalloyed titanium plus 0.12 to 0.25 % palladium,
Grade 9—Titanium alloy (3 % aluminum, 2.5 % vanadium),
Grade 12—Titanium alloy (0.3 % molybdenum, 0.8 % nickel),
Size Tolerance:
| Standard | OD Tolerance | WT Tolerance |
| ASTM B338 | <25.4mm ±0.102mm | ±10% |
| 25.4-38.1mm ±0.127mm | ||
| 38.1-50.8mm ±0.152mm | ||
| 50.8-63.5mm ±0.178mm | ||
| 63.5-88.9mm ±0.254mm | ||
| ASTM B861 | 3.2-3.8mm -0.794/+0.397mm | ±12.5% |
| 38-102mm ±0.794mm | ||
| 102-203mm 0.794/+1.588mm |
Trade Information
| Trade Term | FOB, EXW, CIF |
| MOQ | 200KG |
| Payment | T/T; L/C |
| Sample | Free sample |
| Delivery Time | 15-60 days |
| Package | Wooden cases, or ther suitable for tansport |
| Other service | As customer requires |
Test
Our own lab to ensure the tubes meeting the international standard specifications or customer's requirement, also third part inspections are welcome.
