SGS Titanium Clad Steel Plate Gr5 Gr7 Gr9 Gr12 Aluminium Tube Sheet Heat Exchanger
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, LR |
| Model Number: | NONE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kg |
|---|---|
| Price: | USD 5-10 per kg |
| Packaging Details: | Seaworthy and proper protecting goods packing Case |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 tons per year |
|
Detail Information |
|||
| Material: | Titanium + Aluminium And The Alloys | Machining: | Auto CNC Machine |
|---|---|---|---|
| Drilling: | Auto CNC Machine | Length: | 15 Meters Max |
| Standard: | ASTM B898 | Technical: | Rolling And Explosive |
| Application: | Heat Exchanger | ||
| Highlight: | SGS Titanium Clad Steel Plate,TubeSheet Titanium Clad Steel Plate Gr5 Gr7,Gr9 Gr12 Aluminium Tube Sheet Heat Exchanger |
||
Product Description

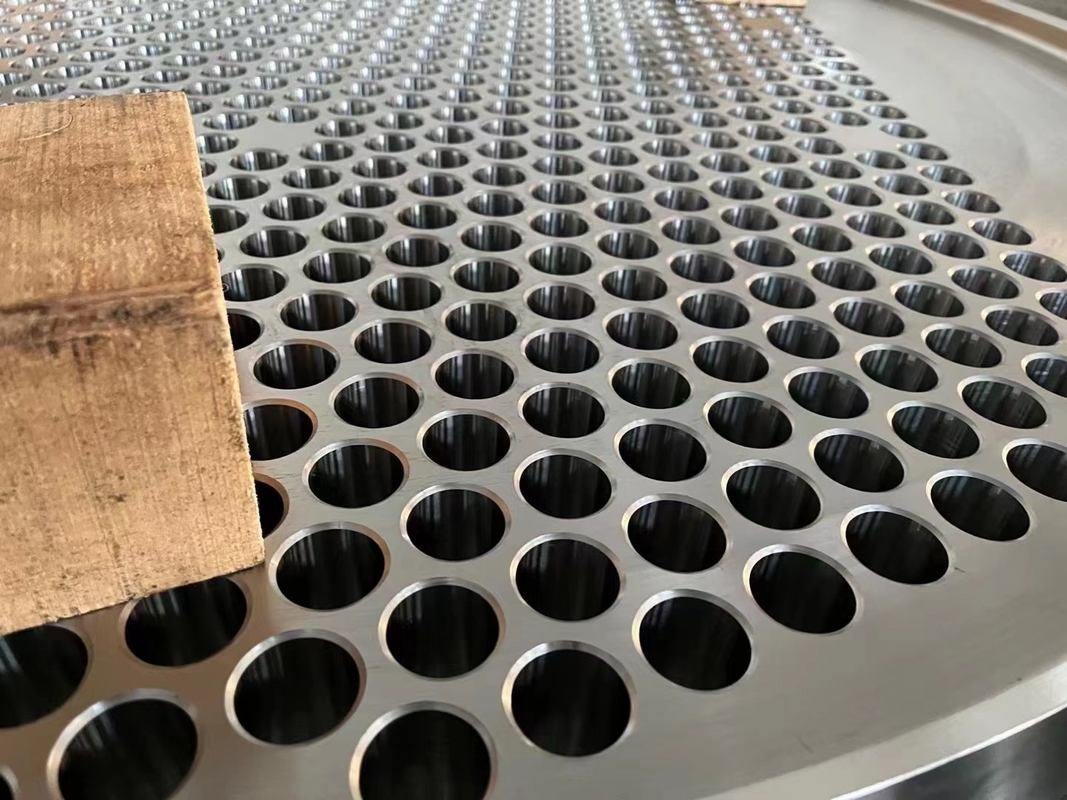

Titanium ASTMB265 Gr1,Gr2,Gr5,Gr7,Gr9,Gr12 +Aluminium and the alloys Tube sheet for Heat Exchanger
Product Description
Titanium cladding steel plates have good strength, meantime have the advantages of titanium. It's a good choice for you if you want titanium's properties and reduce the cost at the same time. Titanium cladding copper materials mainly used in the market of copper recovery.
Please don't hesitate to inquiry! The shortest delivery time, reliable quality and reasonable price. That's what we guarantee.
AVAILABLE SIZES:
Cladding plates thickness:2-12mm
Base plates thickness: 3-400mm
Length: 15 meters Max.
PROCESSING
Rolling cladding and Explosive cladding
| STANDARD | CHEMICAL COMPOSITION (weight %, max or range) | MECHANICAL PROPERTIES (min) | |||||||||||||
| ASTM B265 | UNS No |
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Tensile | Yield | El. | Red. |
| Mpa | Mpa | % | % | ||||||||||||
| GR 1 | R50250 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | 240 | 138 | 24 | 30 | |||||
| GR 2 | R50400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 345 | 275 | 20 | 30 | |||||
| GR 3 | R50550 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | 450 | 380 | 18 | 30 | |||||
| GR 4 | R50700 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | 550 | 483 | 15 | 25 | |||||
| GR 5 | R56400 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | 895 | 828 | 10 | 25 | |||
| GR 7 | R52400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.12-0.25 | 345 | 275 | 20 | 30 | ||||
| GR 9 | R56320 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | 620 | 483 | 15 | 25 | |||
| GR 12 | R53400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.2-0.4 | 0.6-0.9 | 483 | 345 | 18 | 25 | |||
| GR 23 | R56401 | 0.03 | 0.08 | 0.0125 | 0.25 | 0.13 | 5.5-6.5 | 3.5-4.5 | 828 | 759 | 10 |
15
|
|||
