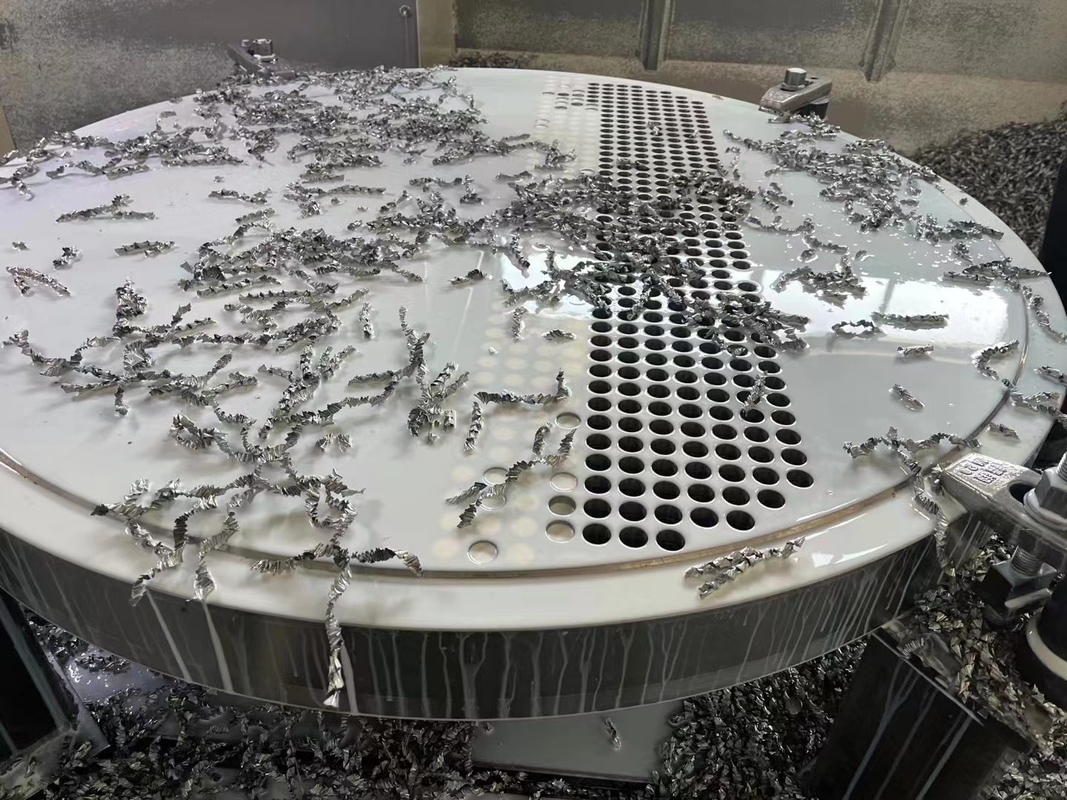

ASTM B898 Titanium Tube Sheet Nickel Pressure Vessel Plate Tube Sheet 3-400mm
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, LR |
| Model Number: | NONE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kg |
|---|---|
| Price: | USD 1-5 per kg |
| Packaging Details: | Seaworthy and proper protecting goods packing |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 tons per year |
|
Detail Information |
|||
| Material: | Titanium + Nickel And The Alloys | Machining: | Auto CNC Machine |
|---|---|---|---|
| Drilling: | Auto CNC Machine | Length: | 15 Meters Max |
| Standard: | ASTM B898 | Technical: | Rolling And Explosive |
| Application: | Heat Exchanger | ||
| Highlight: | ASTM B898 Titanium Tube Sheet,Titanium Tube Sheet Nickel 400mm,Pressure Vessel Plate Tube Sheet 3mm |
||
Product Description
Titanium ASTMB265 Gr1,Gr2,Gr5,Gr7,Gr9,Gr12 + Nickel and the alloys Tube sheet for Heat Exchanger
Product Description
Titanium-Nickel cladding plates are ideal when high strength and corrosion resistance are needed simultaneously, such as pressure vessels, paper-making plant chemical tankers, desalination plants, and so on. Typical applications include petrochemical, chemical, food, fertilizer, wet metallurgy, vacuum salting making, and electroplating.
AVAILABLE SIZES:
Cladding plates thickness:2-12mm
Base plates thickness: 3-400mm
Length: 15 meters Max.
PROCESSING
Rolling cladding and Explosive cladding
| STANDARD | CHEMICAL COMPOSITION (weight %, max or range) | MECHANICAL PROPERTIES (min) | |||||||||||||
| ASTM B265 | UNS No |
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Tensile | Yield | El. | Red. |
| Mpa | Mpa | % | % | ||||||||||||
| GR 1 | R50250 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | 240 | 138 | 24 | 30 | |||||
| GR 2 | R50400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 345 | 275 | 20 | 30 | |||||
| GR 3 | R50550 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | 450 | 380 | 18 | 30 | |||||
| GR 4 | R50700 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | 550 | 483 | 15 | 25 | |||||
| GR 5 | R56400 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | 895 | 828 | 10 | 25 | |||
| GR 7 | R52400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.12-0.25 | 345 | 275 | 20 | 30 | ||||
| GR 9 | R56320 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | 620 | 483 | 15 | 25 | |||
| GR 12 | R53400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.2-0.4 | 0.6-0.9 | 483 | 345 | 18 | 25 | |||
| GR 23 | R56401 | 0.03 | 0.08 | 0.0125 | 0.25 | 0.13 | 5.5-6.5 | 3.5-4.5 | 828 | 759 | 10 |
15
|
|||
