ASTM B898 Titanium Clad Plate Titanium Gr1 Cladding Plates For Tube Sheet
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, LR |
| Model Number: | NONE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | 5-10 usd/kg |
| Packaging Details: | wooden cases for seaworthy transfering |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 tons per year |
|
Detail Information |
|||
| Material: | Cladding Plate Titanium Gr1 | Standard: | ASTM B898 |
|---|---|---|---|
| Size: | Base Plate THK 3-200mm | Thickness: | 8-120mm |
| Length: | 12 Meters Max. | Cladding Plates Thickness: | 2-12mm |
| Highlight: | ASTM B898 Titanium Clad Plate,Titanium Clad Plate Gr1,Titanium Cladding Plates For Tube Sheet |
||
Product Description

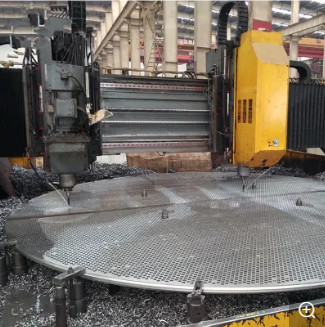

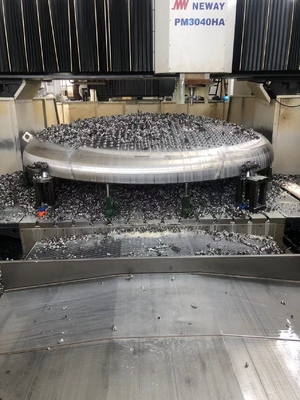

Titanium Gr1 cladding plates for tube sheet for sea water desalination plant
Product Description:
The titanium-clad steel plate is a typical metallic laminar composites. It is also known as titanium cladding or titanium-steel bimetallics. Usually, they are produced by deformation bonding: either hot/cold-roll bonding or explosive bonding. The titanium clad steel plate obtains the low cost and high strength of steel with the outstanding corrosion resistance of titanium.
AVAILABLE SIZES:
Cladding plates thickness:2-12mm
Base plates thickness: 3-200mm
Length: 12 meters Max.
PROCESSING:
Rolling cladding and Explosive cladding
STANDARD:
ASTMB898
EXAMPLE APPLICATIONS:
Urea plant, Sea water desalination plant, Chemical equipment, Petroleum produce, Aerospace and so on....
| STANDARD | CHEMICAL COMPOSITION (weight %, max or range) | MECHANICAL PROPERTIES (min) | |||||||||||||
| ASTM B265 | UNS No |
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Tensile | Yield | El. | Red. |
| Mpa | Mpa | % | % | ||||||||||||
| GR 1 | R50250 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | 240 | 138 | 24 | 30 | |||||
| GR 2 | R50400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 345 | 275 | 20 | 30 | |||||
| GR 3 | R50550 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | 450 | 380 | 18 | 30 | |||||
| GR 4 | R50700 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | 550 | 483 | 15 | 25 | |||||
| GR 5 | R56400 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | 895 | 828 | 10 | 25 | |||
| GR 7 | R52400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.12-0.25 | 345 | 275 | 20 | 30 | ||||
| GR 9 | R56320 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | 620 | 483 | 15 | 25 | |||
| GR 12 | R53400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.2-0.4 | 0.6-0.9 | 483 | 345 | 18 | 25 | |||
| GR 23 | R56401 | 0.03 | 0.08 | 0.0125 | 0.25 | 0.13 | 5.5-6.5 | 3.5-4.5 | 828 | 759 | 10 | 15 |
|||
