ASTM B432 Heat Exchanger Tube Sheet Gr16 Titanium Steel Plate Cladding
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV |
| Model Number: | NONE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100-10000 per piece |
| Packaging Details: | Seaworthy wooden cases with steel frame. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 tons per year |
|
Detail Information |
|||
| Material: | Stainless Steel And Carbon Steel | Size: | 15 Meters Max |
|---|---|---|---|
| Satndard: | ASTM B432 | Machine: | CNC Center |
| Packing: | National Standard Protecting The Goods | Origin: | China |
| Highlight: | ASTM B432 Heat Exchanger Tube Sheet,Heat Exchanger Tube Sheet Gr16,Gr16 Titanium Steel Plate Cladding |
||
Product Description

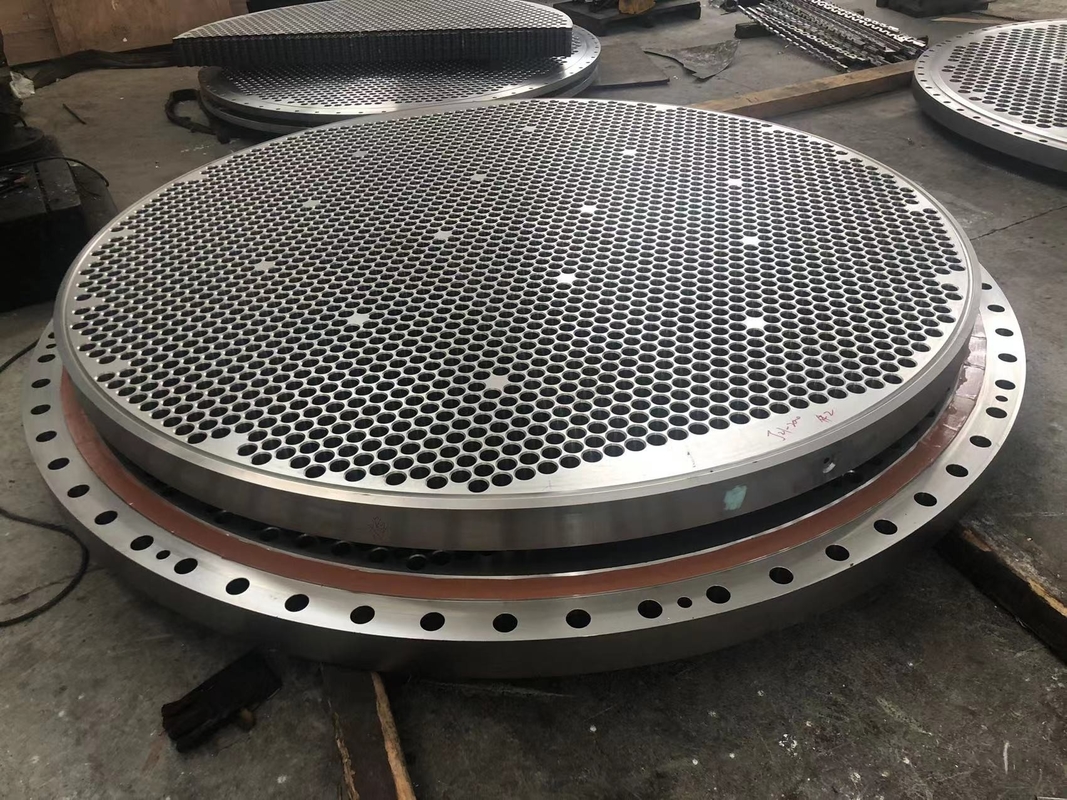

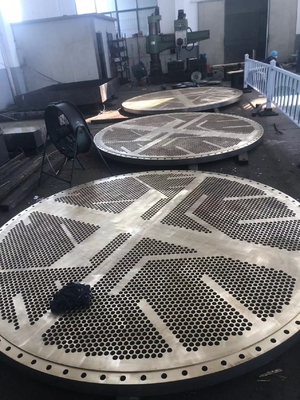

Titanium steel cladding tube sheet for heat exchanger
Maitan provides precision tubesheets with various materials include wide range of clad steel consisting of corrosion resistant materials. We are strict to use of high quality and guaranteed raw material , proved by raw material certificate with each delivery.
CNC drilled, chamfer, grooved etc as the drawings' requirements.
Tube holes can be drilled and reamed and can be machined with one or more grooves. This greatly increases the strength of the tube joint.
CNC drilled, chamfer, grooved etc as the drawings' requirements.
Tube holes can be drilled and reamed and can be machined with one or more grooves. This greatly increases the strength of the tube joint.
| Type of materials | Technical requirements * according to |
| Duplex Stainless Steel | ASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61 |
| Stainless Steel | ASTM/ASME SA182 F304,304L,F316,316L, F310, F317L, F321, F347 |
| Carbon Steel | ASTM/ASME A105, A350 LF1, LF2, A266, A694, A765 Gr.2 |
| Alloy Steel | ASTM/ASME SA182 F1, F5, F9, F11, F12, F22, F51, A350-LF3 |
| Non Ferrous | Titanium, Brass, Al-Brass, Copper Nickel, Nickel Alloys, Hastelloy |
| Titanium | ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16 |
| Copper Nickel | ASTM/ASME SB151, UNS 70600(Cu-Ni 90/10), 71500(Cu-Ni 70/30) |
| Brass, Al-brass | ASTM/ASME SB152 UNS C10100, C10200,C10300,C10800,C12200 |
| Nickel Alloys | ASTM/ASME SB169,SB171, SB564, UNS 2200, UNS 4400, UNS 8825 UNS 6600, UNS 6601, UNS 6625 |
| Alloy 20 | ASTM/ASME SB472 UNS 8020 |
| Hastelloy | ASTM/ASME SB564, UNS10276 ( C 276 ) |
| Claded materials | ASTM/ASME SB898, SB263, SB264 or closer explosion cladding, making materials of 2 in 1 or 3 in 1. |
| Titanium- Steel, Nickel-Steel,Titanium- Copper, Stainless Steel- Carbon Steel, Alloys- Steel etc.  |
