Chemical Field Titanium Cladding Plates Titanium Tube Sheets ASTMb898
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, LR |
| Model Number: | NONE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kg |
|---|---|
| Price: | USD 1-5 per kg |
| Packaging Details: | Seaworthy and proper protecting goods packing |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 tons per year |
|
Detail Information |
|||
| Material: | Titanium Gr1 99.00% | Size: | Diameter 5.0 Meter Max |
|---|---|---|---|
| Standard: | ASTMb898 | Base Plates Thickness:: | 3-200mm |
| Origin: | China | Processing: | Rolling Cladding And Explosive Cladding |
| Highlight: | Titanium Tube Sheets ASTMb898,Chemical Field Titanium Cladding Plates,ASTMb898 Titanium Cladding Plates |
||
Product Description

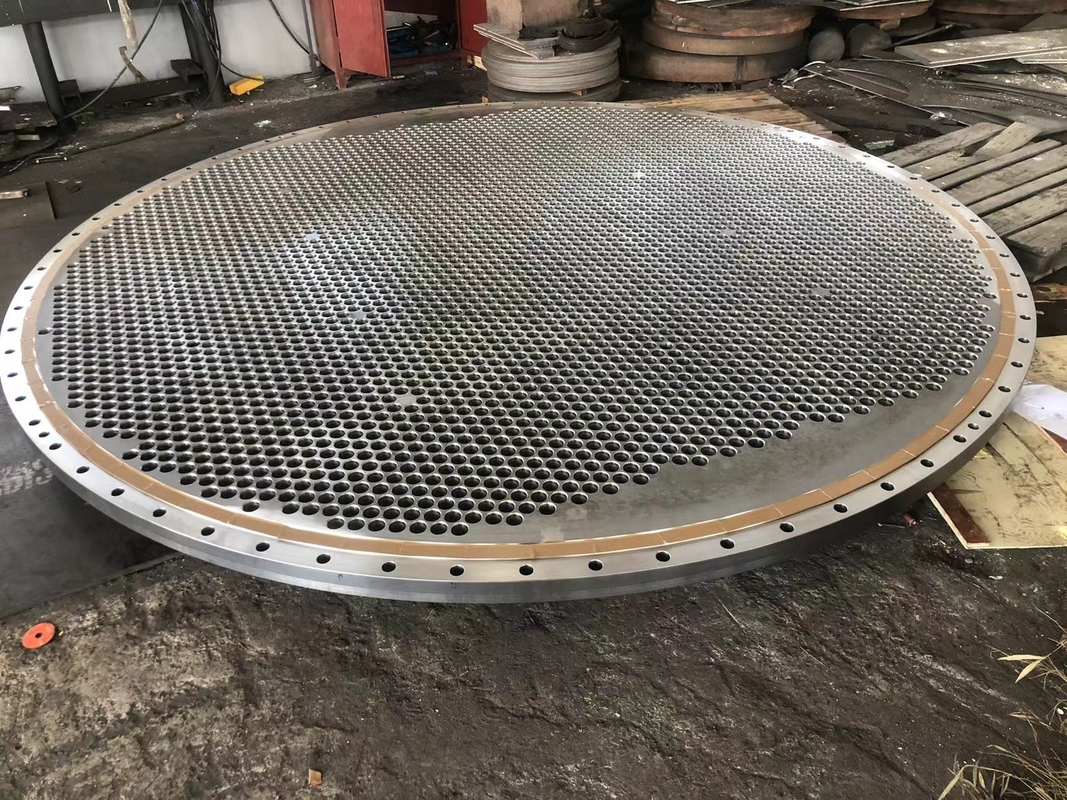

Titanium cladding plates and tube sheets for chemical field
Product Description
Titanium cladding: Titanium is 30% stronger than steel, but almost 50% lighter. Titanium is 60% heavier than aluminum but twice as strong. Titanium has excellent strength retention at 1,000 degrees Fahrenheit. Titanium is alloyed with aluminum, manganese, iron, molybdenum and other metals to increase strength, withstand high temperatures and reduce the weight of the resulting alloy. The high corrosion resistance of titanium clad is also a valuable property. When exposed to the atmosphere, titanium clad forms a tight and tough oxide film that is resistant to many corrosive materials, especially salt water. Thin titanium clad react slowly with water and air at ambient temperatures. This is because, when exposed to both media, the titanium plate forms a passivated oxide coating or coating to protect the bulk of the metal from further oxidation.
AVAILABLE SIZES:
Cladding plates thickness:2-12mm
Base plates thickness: 3-200mm
Length: 12 meters Max.
PROCESSING
Rolling cladding and Explosive cladding
STANDARD:
ASTMB898
EXAMPLE APPLICATIONS:
Urea plant, Sea water desalination plant, Chemical equipment, Petroleum produce, Aerospace and so on....
| STANDARD | CHEMICAL COMPOSITION (weight %, max or range) | MECHANICAL PROPERTIES (min) | |||||||||||||
| ASTM B265 | UNS No |
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Tensile | Yield | El. | Red. |
| Mpa | Mpa | % | % | ||||||||||||
| GR 1 | R50250 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | 240 | 138 | 24 | 30 | |||||
| GR 2 | R50400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 345 | 275 | 20 | 30 | |||||
| GR 3 | R50550 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | 450 | 380 | 18 | 30 | |||||
| GR 4 | R50700 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | 550 | 483 | 15 | 25 | |||||
| GR 5 | R56400 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | 895 | 828 | 10 | 25 | |||
| GR 7 | R52400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.12-0.25 | 345 | 275 | 20 | 30 | ||||
| GR 9 | R56320 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | 620 | 483 | 15 | 25 | |||
| GR 12 | R53400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.2-0.4 | 0.6-0.9 | 483 | 345 | 18 | 25 | |||
| GR 23 | R56401 | 0.03 | 0.08 | 0.0125 | 0.25 | 0.13 | 5.5-6.5 | 3.5-4.5 | 828 | 759 | 10 | 15 |
|||
