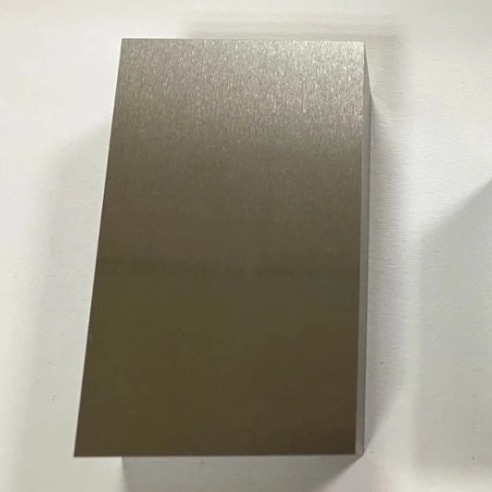

Electronics Pure Tungsten Plate Tungsten Steel Sheet 0.2mm
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, ISO |
| Model Number: | HMD-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | one piece |
|---|---|
| Price: | USD negotiable per KG |
| Packaging Details: | Wooden cases and other proper packing for shipment |
| Delivery Time: | 20 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Tons Per Year |
|
Detail Information |
|||
| Name: | Tungsten Steel Plate | Material: | Tungsten Steel |
|---|---|---|---|
| Application: | Electronics And Semiconductor Industries. | Origin: | China |
| Thickness: | 0.10-0.20mm | Package: | Wooden Case |
| Highlight: | Electronics Pure Tungsten Plate,Pure Tungsten Plate 0.2mm,Tungsten Steel Sheet 0.2mm |
||
Product Description
Tungsten and the alloy plates and sheets
Manufacturing process of tungsten plate:
In manufacturing tungsten plate, we have advanced equipments such as hot rolling mill, annealing furnace, high-tech straightener, hydraulic plate shears and other machines. A significant difference between tungsten plate and tungsten sheet in manufacturing process is that tungsten plate adopts hot rolling.
Tungsten plate applications:
Tungsten plate can be used to produce lighting source parts and electro vacuum equipments, and it can also be applied to electronics and semiconductor industries.
Properties of tungsten plate:
Tungsten plate features good processing performance and low content of impurities. In addition, it is compact in crystal structure.
Specifications of tungsten plate:
| designation | process | delivery condition | size(mm) |
| thickness | |||
| W1 | P/M | cold rolled(Y) | 0.10-0.20 |
| >0.20-0.40 | |||
| hot rolled® | >0.40-4.0 | ||
| >4.0-6.0 |
Tungsten plate Impurities:
| Grade | W-1 | |
| Impurities | Fe | 0.002 |
| (%max) | Si | 0.001 |
| Ca | 0.0005 | |
| Mg | 0.0005 | |
| Ni | 0.001 | |
| Mo | 0.002 | |
| P | 0.001 | |
| C | 0.002 | |
| O | 0.002 | |
| Application | For tungsten alloys |
