ASTM Polished Tungsten Alloy Bar W80cu20 99.95%W Pure Tungsten Rods
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, ISO |
| Model Number: | NONE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 KG |
|---|---|
| Price: | USD 20-30 per KG |
| Packaging Details: | Wooden Boxes, Cases |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 Tons per Year |
|
Detail Information |
|||
| Material: | Tungsten Sheets | Application: | Aviation, Industrial, Medical |
|---|---|---|---|
| Standard: | ASTM | Size: | (0.04-50)* W X L |
| Density: | 19.2g/cm3 | Surface: | Polished |
| Highlight: | ASTM Polished Tungsten Alloy Bar,99.95%W Pure Tungsten Rods,W80cu20 pure tungsten bar |
||
Product Description

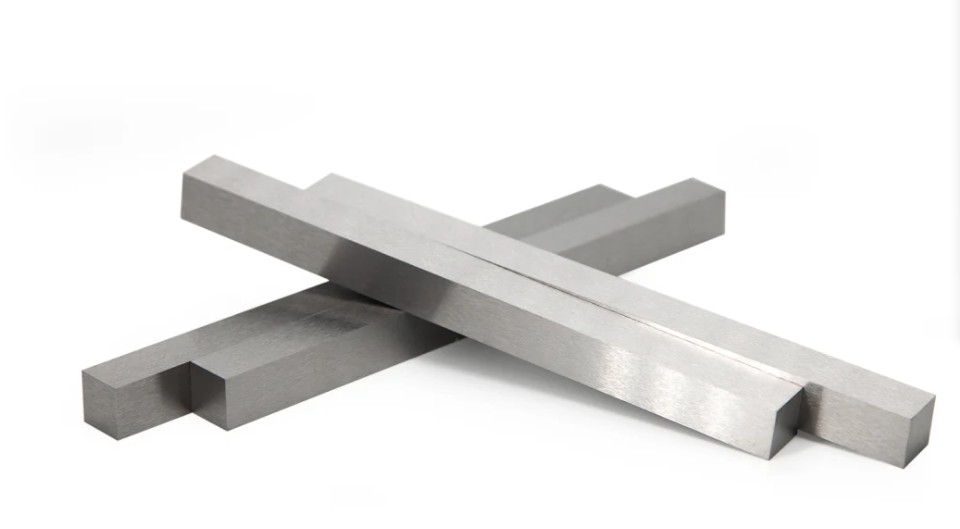

Polished Tungsten Alloy W80cu20 Bars/Rods & 99.95%W Pure Tungsten Rods
Product Description
Pure tungsten plate/sheet and molybdenum sheet/plate/foil/strip

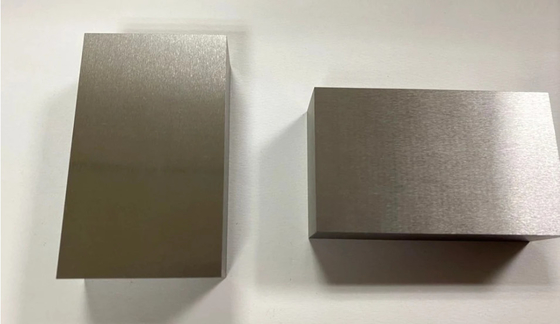

Tungsten sheet/plate/foil/strip
Specification:
1) Tungsten Sheet/Plate Purity: 99.95%
2) Density: >19.1g/cm3
3) Size: according to the needs of users: T(0.03-40)*W(20-600)*L L<2000mm
4) Surface: Black,Alkali Wash and Polished
5) Condition: hot roll
6) Products Application: Tungsten is suitable for light, electric vacuum device, electric semiconductor device, glass fiber kiln heating element, heat shield, boat and finished products etc.
Tungsten sheet/plate/foil/strip
Specification:
1) Tungsten Sheet/Plate Purity: 99.95%
2) Density: >19.1g/cm3
3) Size: according to the needs of users: T(0.03-40)*W(20-600)*L L<2000mm
4) Surface: Black,Alkali Wash and Polished
5) Condition: hot roll
6) Products Application: Tungsten is suitable for light, electric vacuum device, electric semiconductor device, glass fiber kiln heating element, heat shield, boat and finished products etc.
| Material | WCu% Tungsten Content |
Hardness HB |
g/ Density at 20ºC |
W/M.K Thermal conductivity at 25ºC |
(10-6/k) Coefficient of thermal expansion at 20ºC |
| W90Cu10 | 90 | 260 | 17.0 | 180-190 | 6.5 |
| W85Cu15 | 85 | 240 | 16.4 | 190-200 | 7.0 |
| W80Cu20 | 80 | 220 | 15.6 | 200-210 | 8.3 |
| W75Cu25 | 75 | 195 | 14.9 | 220-230 | 9.0 |
| W50Cu50 | 50 | 125 | 12.2 | 310-340 | 12.5 |
