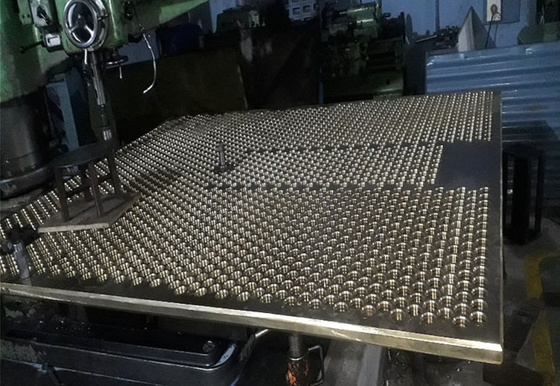

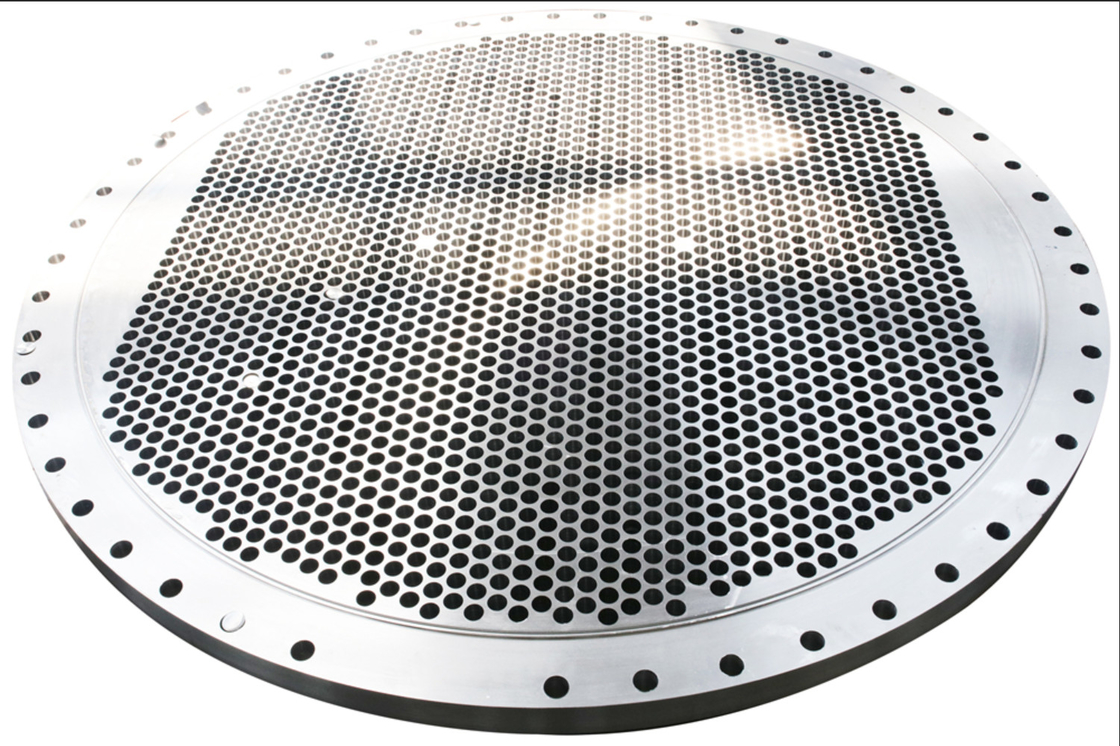

Corrosion Resistance Titanium Tubesheet Gr1 Gr2 Gr5 Clad Tube Sheet
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, LR |
| Model Number: | NONE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kg |
|---|---|
| Price: | USD 1-5 per kg |
| Packaging Details: | Seaworthy and proper protecting goods packing |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 tons per year |
|
Detail Information |
|||
| Material: | Titanium Gr1, Gr2 | Cladding Size: | 2-12mm |
|---|---|---|---|
| Base Plate Size: | 2-200mm | Length: | 15 Meters Max |
| Standard: | ASTM B898 | ||
| Highlight: | Corrosion Resistance Titanium Tubesheet,Titanium Tubesheet Gr1 Gr2,Gr5 Clad Tube Sheet |
||
Product Description
Corrosion Resistance Titanium Clad Plate Gr1 Gr2 Gr5 Cladding Plates Tube Sheets
Product Description
Titanium tube sheet heat exchangers were developed to maximize surface area in a very compact package. Designed for both refrigerant to water and water to water applications. All internal materials are non-corrosive in seawater and will not leach toxic elements into the system water. The internal tube sheet coil is constructed entirely of titanium tubing and enclosed in insulated Schedule 40 PVC shell. Also available with Schedule 80 PVC & Schedule 80 CPVC Shells. One end is flanged for cleaning and coil inspection. Available in sizes from 7.5 hp (90,000 btus) and larger.
Materials:
Titanium, nickel, titanium/steel, nickel/steel, copper, stainless steel/steel, carbon steel composites
Pressure:
low-pressure, medium-pressure and high-pressure.
Temperature:
low-temperature heat exchanger, medium-temperature heat exchanger,but also high-temperature heat exchanger.
Medium:
not only non-flammable, non-toxic and non-corrosive medium but also flammable, toxic, corrosive medium and highly flammable, highly toxic, highly corrosive medium.
AVAILABLE SIZES:
Cladding plates thickness:2-12mm
Base plates thickness: 3-200mm
Length: 12 meters Max.
PROCESSING
Rolling cladding and Explosive cladding
STANDARD:
ASTMB898
EXAMPLE APPLICATIONS:
Urea plant, Sea water desalination plant, Chemical equipment, Petroleum produce, Aerospace and so on....
| STANDARD | CHEMICAL COMPOSITION (weight %, max or range) | MECHANICAL PROPERTIES (min) | |||||||||||||
| ASTM B265 | UNS No |
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Tensile | Yield | El. | Red. |
| Mpa | Mpa | % | % | ||||||||||||
| GR 1 | R50250 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | 240 | 138 | 24 | 30 | |||||
| GR 2 | R50400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 345 | 275 | 20 | 30 | |||||
| GR 3 | R50550 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | 450 | 380 | 18 | 30 | |||||
| GR 4 | R50700 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | 550 | 483 | 15 | 25 | |||||
| GR 5 | R56400 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | 895 | 828 | 10 | 25 | |||
| GR 7 | R52400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.12-0.25 | 345 | 275 | 20 | 30 | ||||
| GR 9 | R56320 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | 620 | 483 | 15 | 25 | |||
| GR 12 | R53400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.2-0.4 | 0.6-0.9 | 483 | 345 | 18 | 25 | |||
| GR 23 | R56401 | 0.03 | 0.08 | 0.0125 | 0.25 | 0.13 | 5.5-6.5 | 3.5-4.5 | 828 | 759 | 10 | 15 |
|||
