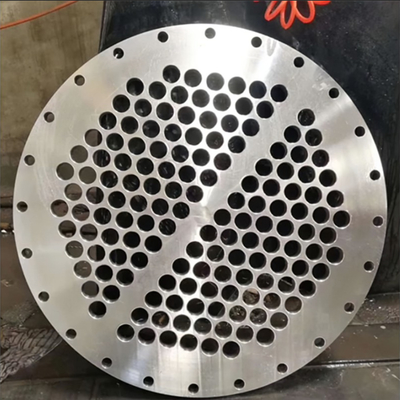

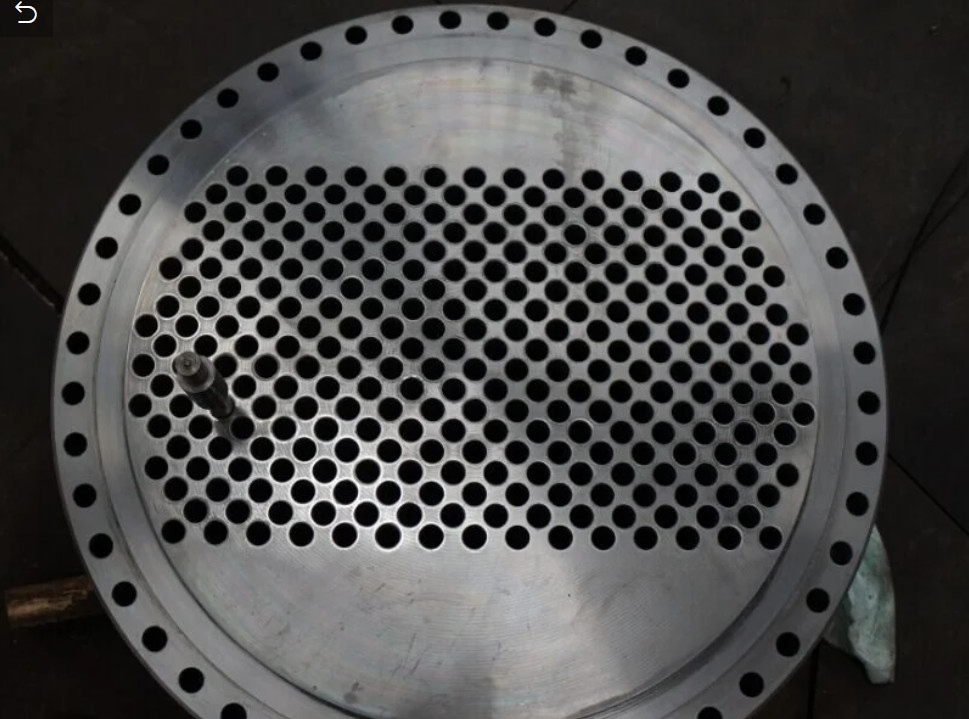

UNS 6625 8825 Heat Exchanger Tube Sheet GR70 304L 316L Nickel Tube Sheet
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV,CE |
| Model Number: | NONE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | USD 10-20 per KG |
| Packaging Details: | Wooden Case, Pallets and Others Proper for Transfer |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Tons per Year |
|
Detail Information |
|||
| Material: | UNS6625, UNS8825 | Type: | Explosive Or Cold Rolled |
|---|---|---|---|
| Surface: | Bright | Size: | Cladding Side 2-20 Mm |
| Length And Diameter: | Max 5000 Mm | Status: | Annealed |
| Highlight: | UNS 6625 8825 Heat Exchanger Tube Sheet,Heat Exchanger Tube Sheet GR70,304L 316L Nickel Tube Sheet |
||
Product Description
Explosion Bonded Nickel Alloy UNS 6625, UNS8825 and SA 516 GR70/304L/316L Tube Sheet For Heat Exchanger
PRODUCTION
Model NO.: Nickel Hastelloy C276 + SA516 GR70
Standard: ASTM, GB, JIS, BS
Technique: Explosion Bonded or Cold Rolled
Special Use: Corrosion Resistant Field
Production Code: ASTM A265
Application: Chemical, Petro-chemical, sea engineering, etc.
Origin: CHN
Specification: SGS, EN10204 3.1, EN10204 3.2, TUV, BV, CE
| Type of materials | Technical requirements * according to |
| Duplex Stainless Steel | ASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61 |
| Stainless Steel | ASTM/ASME SA182 F304,304L,F316,316L, F310, F317L, F321, F347 |
| Carbon Steel | ASTM/ASME A105, A350 LF1, LF2, A266, A694, A765 Gr.2 |
| Alloy Steel | ASTM/ASME SA182 F1, F5, F9, F11, F12, F22, F51, A350-LF3 |
| Non Ferrous | Titanium, Brass, Al-Brass, Copper Nickel, Nickel Alloys, Hastelloy |
| Titanium | ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16 |
| Copper Nickel | ASTM/ASME SB151, UNS 70600(Cu-Ni 90/10), 71500(Cu-Ni 70/30) |
| Brass, Al-brass | ASTM/ASME SB152 UNS C10100, C10200,C10300,C10800,C12200 |
| Nickel Alloys | ASTM/ASME SB169,SB171, SB564, UNS 2200, UNS 4400, UNS 8825 UNS 6600, UNS 6601, UNS 6625 |
| Alloy 20 | ASTM/ASME SB472 UNS 8020 |
| Hastelloy | ASTM/ASME SB564, UNS10276 ( C 276 ) |
| Claded materials | ASTM/ASME SB898, SB263, SB264 or closer explosion cladding, making materials of 2 in 1 or 3 in 1. |
| Titanium- Steel, Nickel-Steel,Titanium- Copper, Stainless Steel- Carbon Steel, Alloys- Steel etc. |
