High Purity 99.95% Niobium Alloy Ro 4210 4216 ASTM B393 Niobium Foil
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, LR |
| Model Number: | HMD-Nb |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 KG |
|---|---|
| Price: | USD 30-50 per KG |
| Packaging Details: | Export standard package with polywood case or ISPM 15 stamped wooden case |
| Delivery Time: | 20 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Tons Per Year |
|
Detail Information |
|||
| Material: | Niobium | Density: | 8.57 (g Cm−3) |
|---|---|---|---|
| Melting Point: | 2410 °C | Boiling Point: | 5100 °C |
| Status: | Anneal | Surface: | Bright |
| Highlight: | High Purity 99.95% Niobium Alloy,Niobium Alloy Ro 4210 4216,ASTM B393 Niobium Foil |
||
Product Description

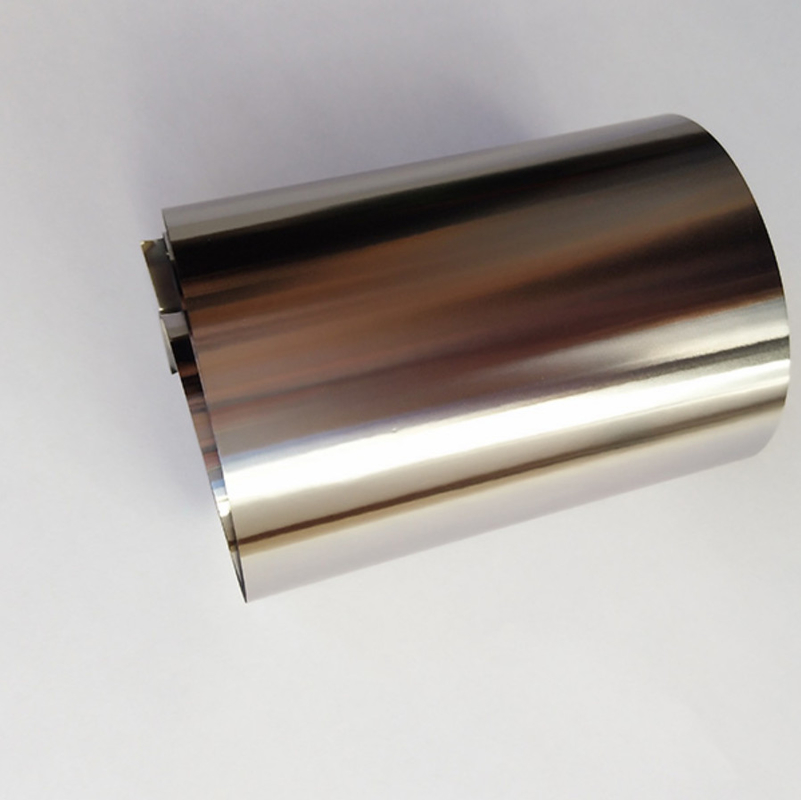

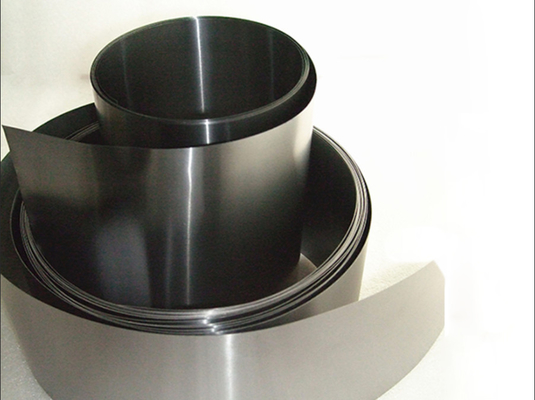

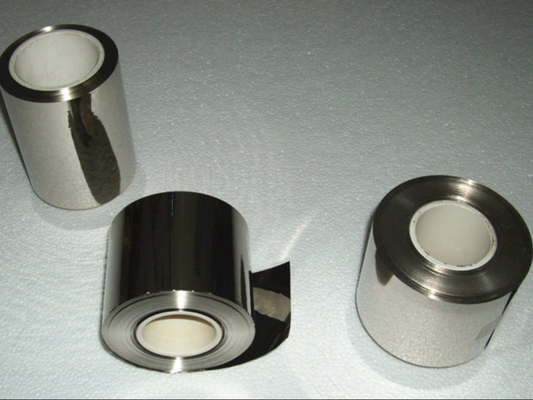

High Purity 99.95% Ro 4210/4216 ASTM B393 Thickness 0.03mm Niobium Foil
Description
Niobium is a shiny, white, soft, and ductile metal, and takes on a bluish cast when exposed to air at room temperatures for a long time. The metal starts to oxidize in air at 200°C, and when processed at even moderate temperatures must be placed in a protective atmosphere.
Niobium is used as an alloying agent and for jewelry, but perhaps its most interesting applications are in the field of superconductivity. Superconductive wire can be made from an alloy of niobium and titanium which can then be used to make superconductive magnets. Other alloys of niobium, such as those with tin and aluminum, are superconductive as well. Pure niobium is itself a superconductor when it is cooled below 9.25 K (-442.75°F). Superconductive niobium cavities are at the heart of a machine built at the Thomas Jefferson National Accelerator Facility. This machine, called an electron accelerator, is used by scientists to study the quark structure of matter. The accelerator's 338 niobium cavities are bathed in liquid helium and accelerate electrons to nearly the speed of light.
| Product Name | high purity 99.95% astm b393 niobium foil |
| Apearance | foil |
| Application | Electronic Industry, Superconductivity Sputtering, Target,Chemical, Medical, Industry |
| Grade | R04210,R04261,Nb1Zr,Nb-Ti,PWC-11 |
| Package | Wooden cases outside with protective materials inside |
| Payment | L/C,D/P,T/T/Paypal |
| MOQ | 1kg |
| Delivery time | 12-15 workdays |
| Market | Global |
| Condition | 1.Hot-rolled/Cold-rolled; 2.Alkaline Cleaning 3.Electrolytic Polish; 4.Machining, grinding 5.Stress relief annealing |
| size | Item Thickness (mm) Width (mm) Length(mm) Foil 0.01-0.09 30-150 >200 Sheet 0.1-0.5 30- 609.6 30-1000 Plate 0.5-10 50-1000 50-2000 Strip 0.01-1.5mm 100-500mm 1000-3000 |
