Zirconium Tantalum Cladding Plate ASTM Boiler Tubesheet Polished
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, ISO |
| Model Number: | HMD-ZR |
Payment & Shipping Terms:
| Minimum Order Quantity: | one piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden cases and other packing proper for shipment |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Tons per Year |
|
Detail Information |
|||
| Name: | Zirconium Cladding Plates And Tubesheets | Technical: | Explosion And Rolling |
|---|---|---|---|
| Status: | Annealed | Surface: | Polished |
| Standard: | ASTM | Material: | ZR60702, ZR60705 |
| Highlight: | Zirconium Tantalum Cladding Plate,ASTM Boiler Tubesheet Polished,Zirconium Tantalum Boiler Tubesheet |
||
Product Description

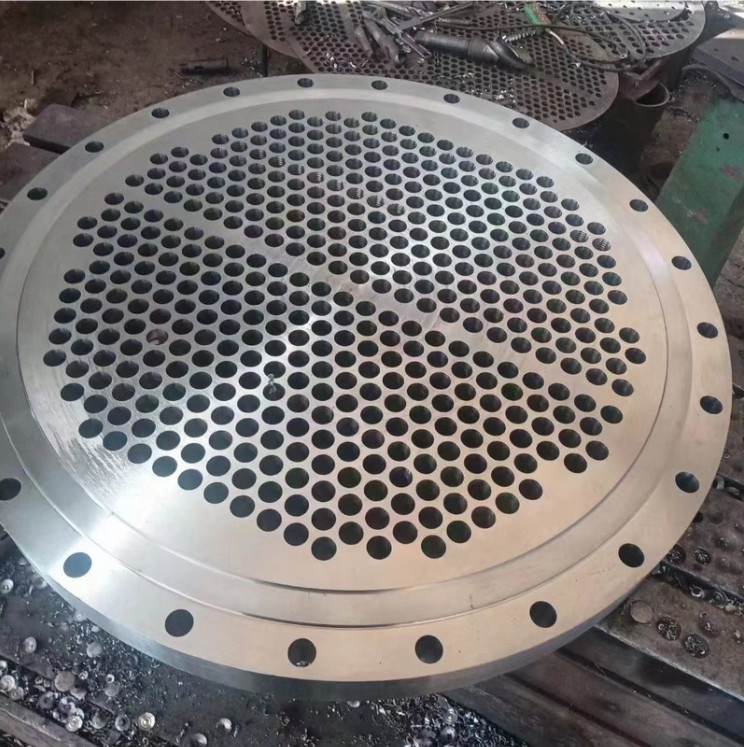

Zirconium and Tantalum Cladding Plates and Sheets and Tubesheets
Product Description
Tubesheet is widely used in shell and tube heat exchanger, boiler, pressure vessel, steam turbine, large central air
Conditioning, etc. The customized high precision tube sheet is mainly used for chemical containers, such as shell and tube
Heat exchanger, boiler, pressure vessel, condenser, central air conditioning, evaporator, water desalination with the function of
Supporting the fixed shell and tube. The material of metal makes it not only has the very strong rigidity, and has a great deal of
Heat conduction performance.
Feature of tube sheet: High gloss, good tube hole surface quality, high precisive
Material of tube sheet: Copper, stainless steel, titanium, aluminium, carbon steel, brass., etc
Production of tube sheet: OEM, ODM available
Quliaty of our tube sheet: Prime
Application of tube sheet: Heat exchanger, boiler, pressure vessel, steam burbine, air conditioning., etc
Function of tube sheet: Support and fix the tube and shell, heat conductive, corrosive resistant, high pressure
*Specification (for your reference, not limited)
Range
Diameter350mm~2000mm
Thickness45mm~650mm
| ype of materials | Technical requirements * according to |
| Duplex Stainless Steel | ASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61 |
| Stainless Steel | ASTM/ASME SA182 F304,304L,F316,316L, F310, F317L, F321, F347 |
| Carbon Steel | ASTM/ASME A105, A350 LF1, LF2, A266, A694, A765 Gr.2 |
| Alloy Steel | ASTM/ASME SA182 F1, F5, F9, F11, F12, F22, F51, A350-LF3 |
| Non Ferrous | |
| Titanium | ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16 |
| Copper Nickel | ASTM/ASME SB151, UNS 70600(Cu-Ni 90/10), 71500(Cu-Ni 70/30) |
| Brass, Al-brass | ASTM/ASME SB152 UNS C10100, C10200,C10300,C10800,C12200 |
| Nickel Alloys | ASTM/ASME SB169,SB171, SB564, UNS 2200, UNS 4400, UNS 8825 UNS 6600, UNS 6601, UNS 6625 |
| Alloy 20 | ASTM/ASME SB472 UNS 8020 |
| Hastelloy | ASTM/ASME SB564, UNS10276 ( C 276 ) |
| Claded materials | ASTM/ASME SB898, SB263, SB264 or closer explosion cladding, making materials of 2 in 1 or 3 in 1. |
| Titanium- Steel, Nickel-Steel,Titanium- Copper, Stainless Steel- Carbon Steel, Alloys- Steel etc. |
| Thickness | 3mm-600mm / Clients' requirement |
| Width | 500mm-4000mm / Clients' requirement |
| Length | 3000-18000mmm/ Clients' requirement |
| Delivery condition | a. Thickness < 1.5Inch(40mm) - As Rolled Or Normalized b. Thickness ≥ 1.5Inch(40mm) - Normalized |
| Making method | Hot Rolled |
| Payment | 30%TT in advance,Balanced against copy of B/L. OR L/C at sight |
| Package | Standard Seaworthy Package,as You Request |
| Delivery time | 5-7 Days,according to clients' requirement and quantity. |
| Why Choose us | a. Experienced and Trained Staff b. Credit first, Be Honesty c. Mutual Benefit, Customer Supremacy |
