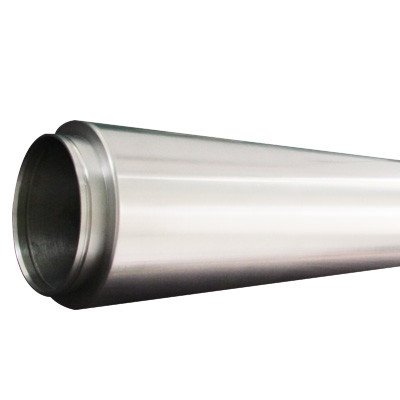

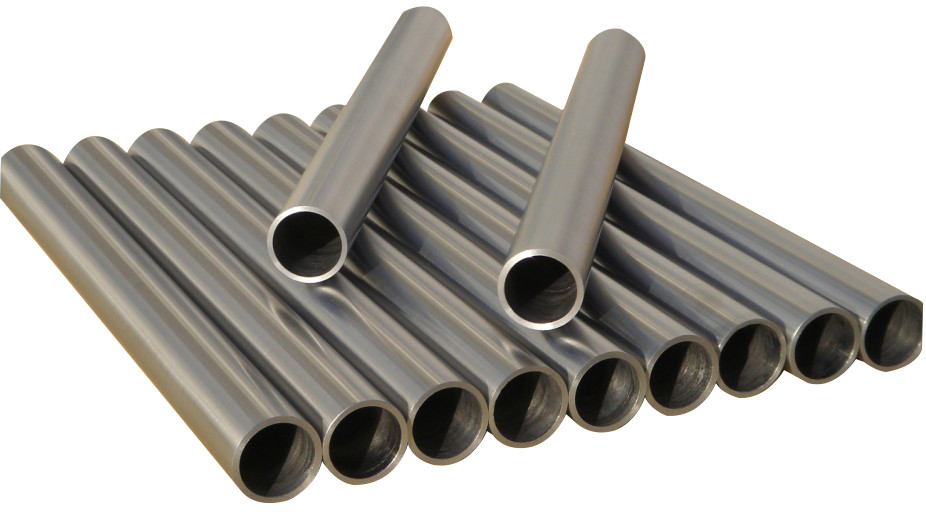

ASME Zirconium Alloy Tube R60702 R60705 Seamless Welded Zirconium Pipe
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, ISO |
| Model Number: | HMD-ZR |
Payment & Shipping Terms:
| Minimum Order Quantity: | one piece |
|---|---|
| Price: | USD 30-50 Per Kg |
| Packaging Details: | Wooden cases and other packing proper for shipping. |
| Delivery Time: | 20 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Tons Per Year |
|
Detail Information |
|||
| Material: | ZR60702, ZR60705 | Standard: | ASME/ASTM |
|---|---|---|---|
| Product: | Zirconium Tubes, Bars | Status: | Annealed |
| Density: | 6506 Kg/M3 | Melt Point: | 1800 Degree |
| Highlight: | ASME Zirconium Alloy Tube,Zirconium Alloy Tube R60702,R60705 Seamless Welded Zirconium Pipe |
||
Product Description
Product Description
Zirconium Tube and Zirconium Pipe are made of metal zirconium and other metals. Due to the excellent nuclear performance and corrosion resistance of zirconium, zirconium alloy tubes and pipes are often used in nuclear fuel assemblies and internal structures of water-cooled reactors and are important nuclear materials.
At Superior Tube we commonly use zirconium-based alloys to manufacture nuclear reactor components such as control rods and cladding, coolant channels, seal tubes and other equipment intended for use in a radioactive environment.
Zirconium alloys have low neutron absorption, high strength and high corrosion resistance under different operating conditions. Compared to stainless steels, zirconium tubing is desirable because of its texture. The metal has a high yield strength and is more resistant to irradiation creep and stress corrosion cracking.
Superior Tube can manufacture precision tubes in the following Zirconium alloys:
Name; Zirconium Tubes, Zirconium Pipes
Trademark: Zr702 Zr704 Zr705
Administer standard: ASTM B-550
Dimension: Φ5.0-110mm*THK(1.0-4.5mm)*LENGTH(2000-6000mm)Seamless Pipes
Φ110 and Above*(1.0-8.0mm)THK*(1000-2000mm) Welded Pipes
| Element | Grade R60702 | Grade R60704 | Grade R60705 |
| Zircornium+hafnium,min | 99.2 | 97.5 | 95.5 |
| Hafnium,Max | 4.5 | 4.5 | 4.5 |
| Iron+chromium | 0.2 Max | 0.2 to 0.4 | 0.2 Max |
| Tin | ... | 1.0 to 2.0 | .... |
| Hydrogen,max | 0.005 | 0.005 | 0.005 |
| Carbon,max | 0.025 | 0.025 | 0.025 |
| Oxygen,Max | 0.16 | 0.18 | 0.18 |
