N02200 Explosive Nickel Clad Stainless Steel Plate SA 516 GR70 Nickel Cladding Plate
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV,CE |
| Model Number: | NONE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | USD 10-20 per KG |
| Packaging Details: | Wooden Case, Pallets and Others Proper for Transfer |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Tons per Year |
|
Detail Information |
|||
| Material: | Carbon And Stainless Base Plate | Type: | Explosive Or Cold Rolled |
|---|---|---|---|
| Standard: | ASTM SA265 | Size: | Cladding Side 2-20 Mm |
| Length And Diameter: | Max 5000 Mm | Status: | Annealed |
| Highlight: | N02200 Explosive Nickel Clad Stainless Steel Plate,Explosive Nickel Clad Stainless Steel Plate SA,516 GR70 Nickel Cladding Plate |
||
Product Description

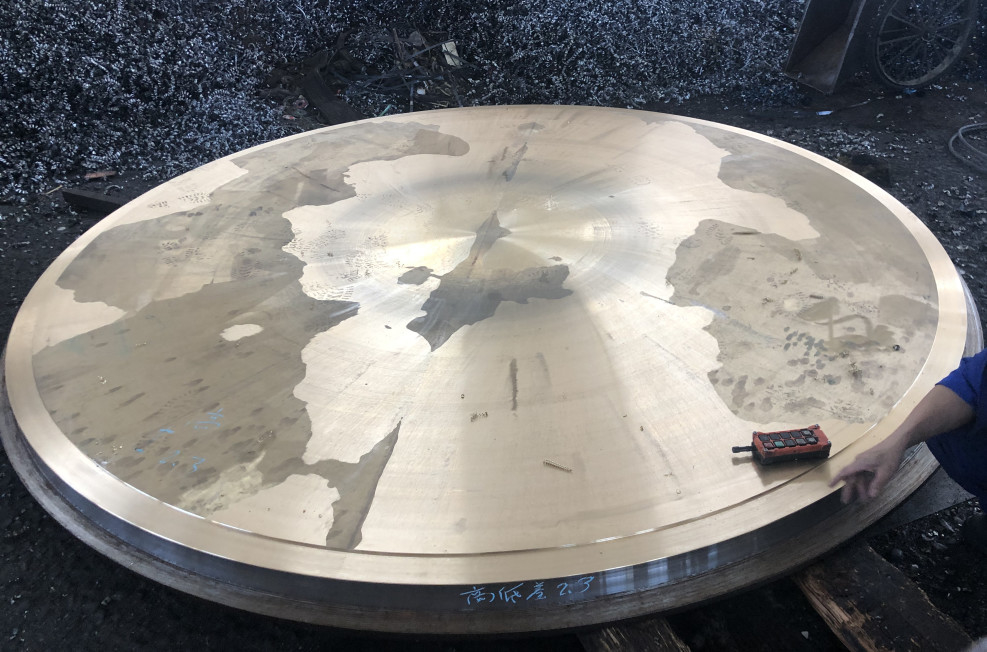

Explosion bonded Nickel Alloy N02200 + SA 516 GR70 Cladding Plate Tube Sheet for Heat Exchanger
Production
Explosive welding of nickel clad stainless steel plate
The method of adding a little high explosive explosive under the detonator can reduce the detonator area and enlarge the joint area ratio. The results of the detonation direction and the center line of the composite board indicate that there are waveforms in the entire joint zone. Moreover, as the detonation wave propagates, the waveform has a development process: there is a linear combination section at and near the detonation position, followed by a small waveform, and then gradually increases. After 140 mm, the waveform size and waveform shape tend to be stable.
Model NO.: Nickel Alloy + Carbon steel and Stainless steel
Standard: ASTM, GB, JIS, BS
Technique: Explosion Bonded or Cold Rolled
Special Use: Corrosion Resistant Field
Name: Explosive Welded Nickel Alloy /Steel SA516 Gr70
Base Metal(mm): as Customer′s Requires
Length(mm): Request
Grade: ASTM Standard Steel
Origin: CHN
Specification: SGS, EN10204 3.1, EN10204 3.2, TUV, BV, CE
| Product Name | Nickel Alloy Plate |
| Length | As required |
| Width | 3mm-5000mm |
| Thickness | 2mm-300mm or as required |
| Standard | AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc. |
| Technique | Explosion Bonded or Cold Rolled |
| Surface Treatment | Polished, sand blast, stain brush, etching,etc. |
| Material | Inconel600/601/625/718/X-750/713C,Incoloy800H/800/901/925/926/A286 Hastelloy B/B-2/C-4/C-22/C-276, Monel400/K500,Nickel N02200/N02201 |
